File:Sharp PC-1500 power supply circuit (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

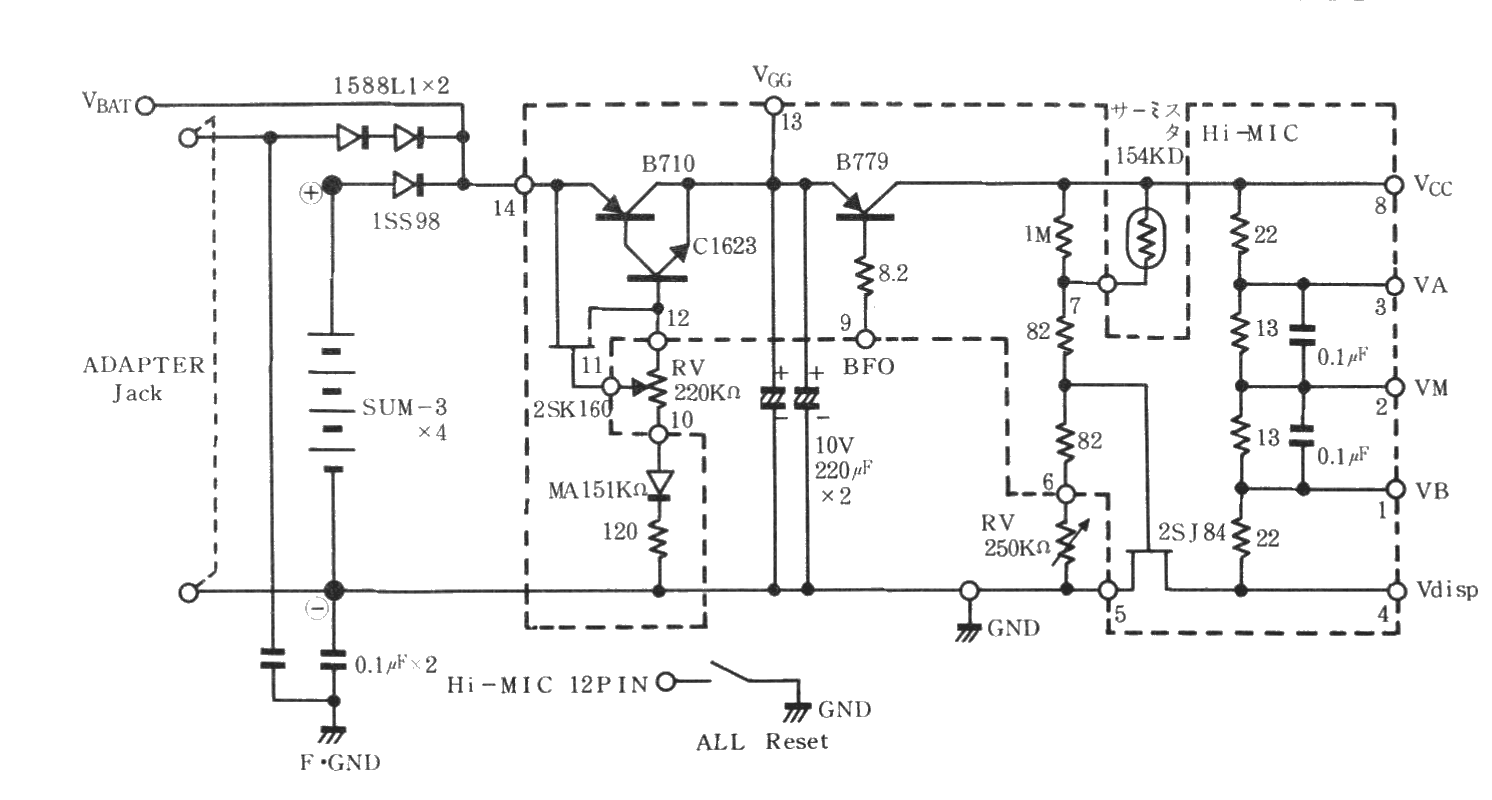

The power supply part of the "PC-1500 Key & Power Supply Circuit" diagram from Sharp's PC-1500 service manual (section 6, printed page 21): the four UM-3 (AA) cells and the adaptor jack feeding the Hi-MIC regulator module through 1SS98 and 1S1588 diodes, the two 10 V 220 µF capacitors on VGG, and the VCC, VA, VM, VB and Vdisp outputs. Rendered at 300 dpi from the scan and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Sharp PC-1500 Service Manual.pdf, PDF page 23. The scan came from Sharp Pocket Computers (sharppocketcomputers.com), retrieved 2026-10-21.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Sharp Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Sharp Corporation. Hosted for preservation and repair reference, with the source cited.
