File:Sony HB-101P HB-201P power supply circuit (service manual).png
Size of this preview: 747 × 599 pixels. Other resolution: 1,770 × 1,420 pixels.
Original file (1,770 × 1,420 pixels, file size: 87 KB, MIME type: image/png)
Summary

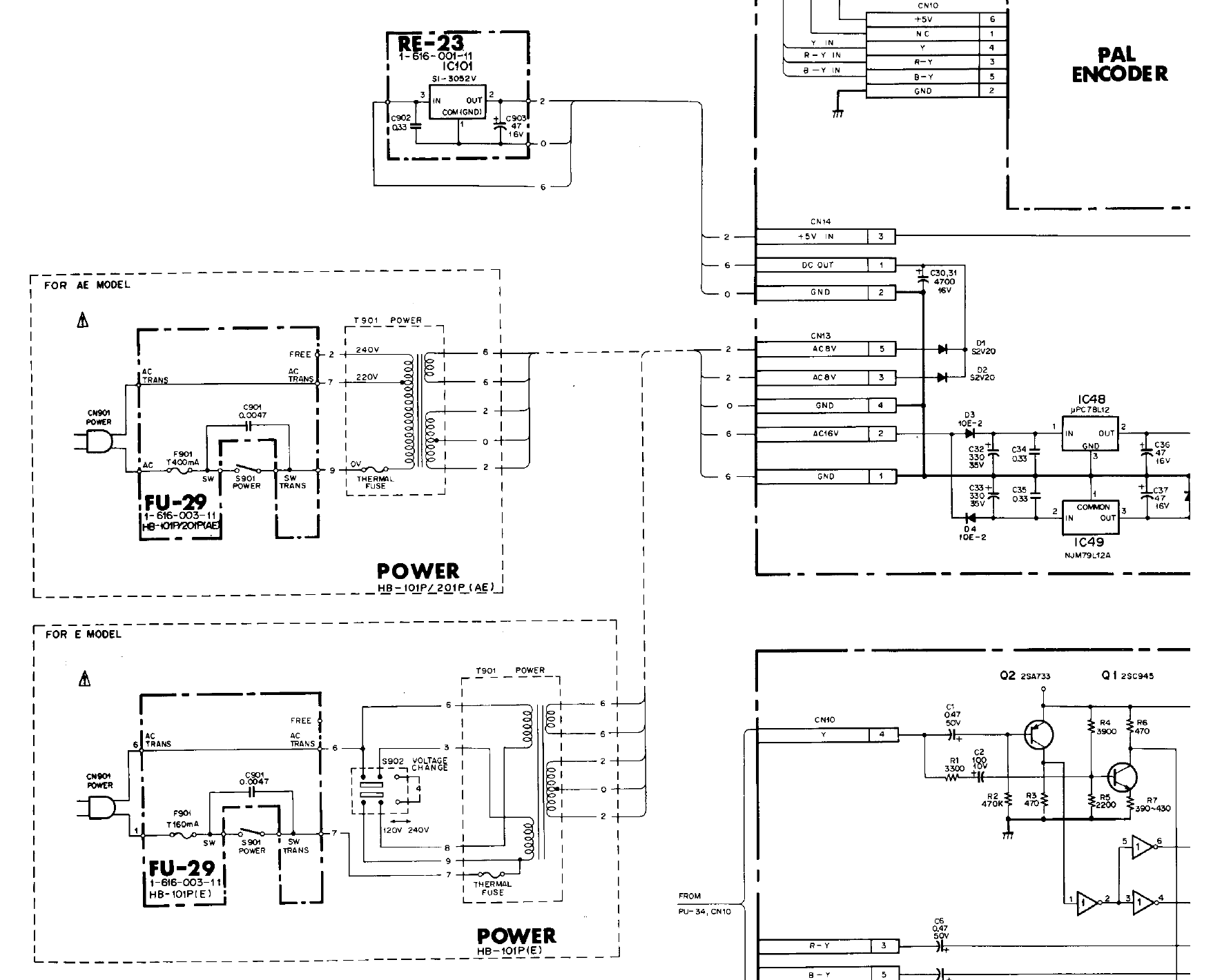

[edit | edit source]The power supply section of Sony's HB-101P/201P schematic (page 5-23): the FU-29 fuse and switch board for the AE (220/240 V) and E (120/240 V) versions, transformer T901 with its thermal fuse, the rectifiers and reservoirs on the PU-34 board (D1, D2, C30, C31 for 5 V; D3, D4, C32, C33 for ±12 V), the RE-23 board with the SI-3052V 5 V regulator, and IC48 and IC49 for +12 V and −12 V.
Source
[edit | edit source]Rendered from File:Sony HB-101P HB-201P Service Manual.pdf, page 5-23.
Author
[edit | edit source]Sony Corporation.
Licence
[edit | edit source]Copyright Sony Corporation. Hosted for preservation and repair reference, with the source cited.
