File:Sony HB-101P disassembly (service manual).png
Size of this preview: 474 × 599 pixels. Other resolution: 1,547 × 1,956 pixels.
Original file (1,547 × 1,956 pixels, file size: 124 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

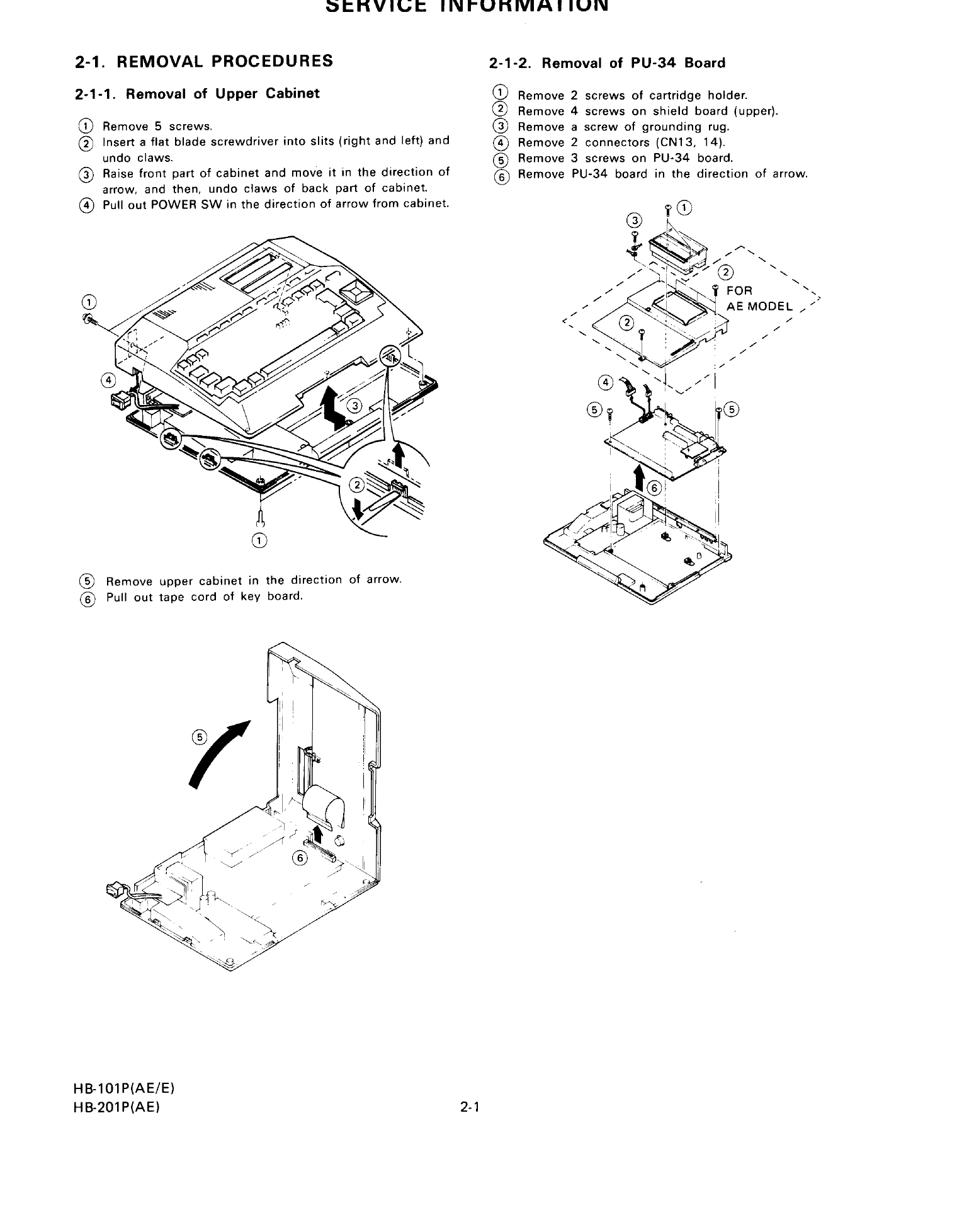

Removal procedures from page 2-1 of Sony's HB-101P/201P service manual: removing the upper cabinet (five screws and the claws at the slits), pulling out the power switch and keyboard tape cable, and removing the PU-34 board.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Sony HB-101P HB-201P Service Manual.pdf, page 2-1.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Sony Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Sony Corporation. Hosted for preservation and repair reference, with the source cited.
