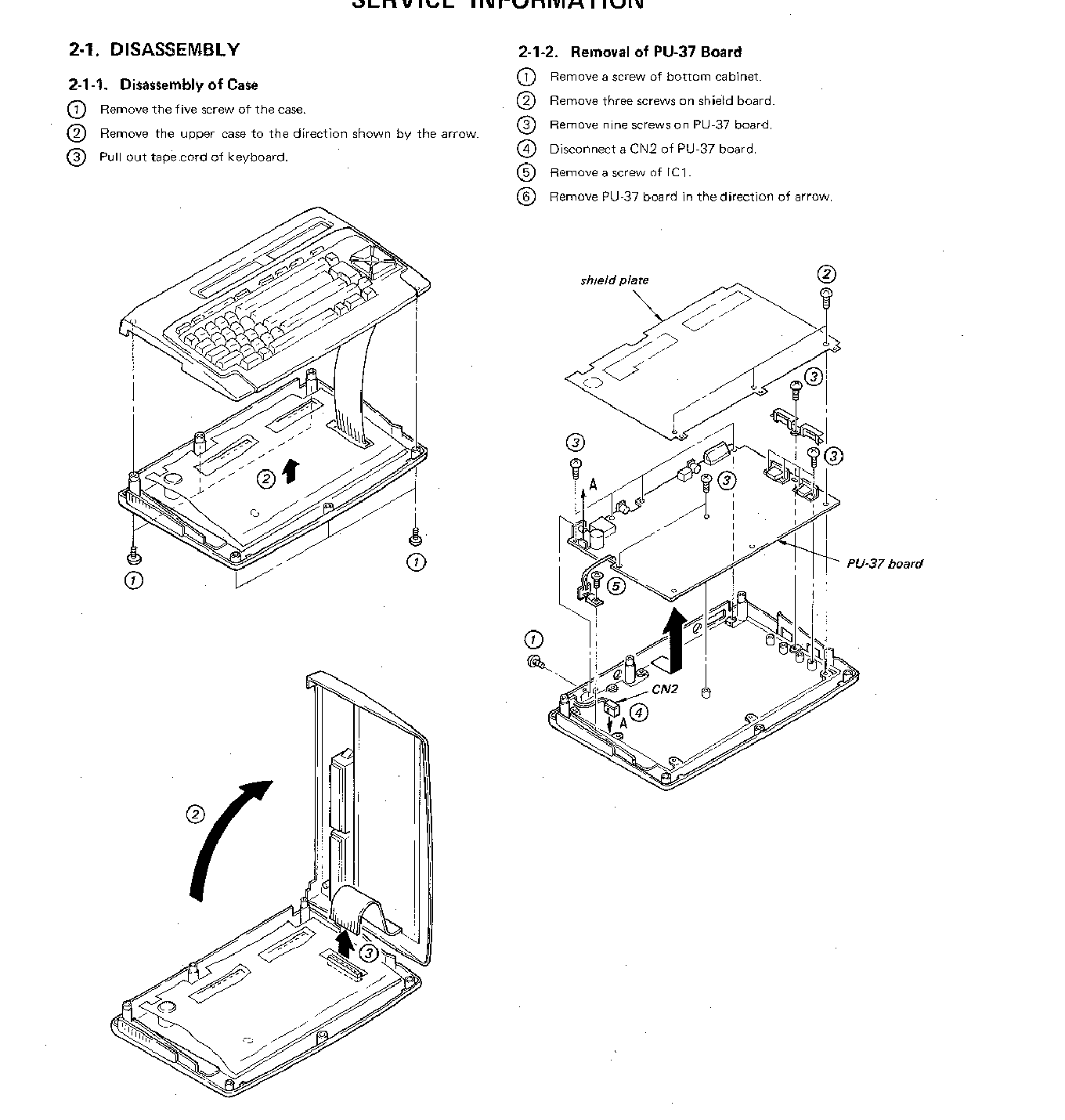

Disassembly drawings from page 2-1 of Sony's HB-10P/10B service manual: removing the five case screws and lifting the upper case, unplugging the keyboard tape cable, and removing the shield plate and the PU-37 board.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Sony HB-10P HB-10B Service Manual 9-975-599-01.pdf, page 2-1.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Sony Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Sony Corporation. Hosted for preservation and repair reference, with the source cited.
