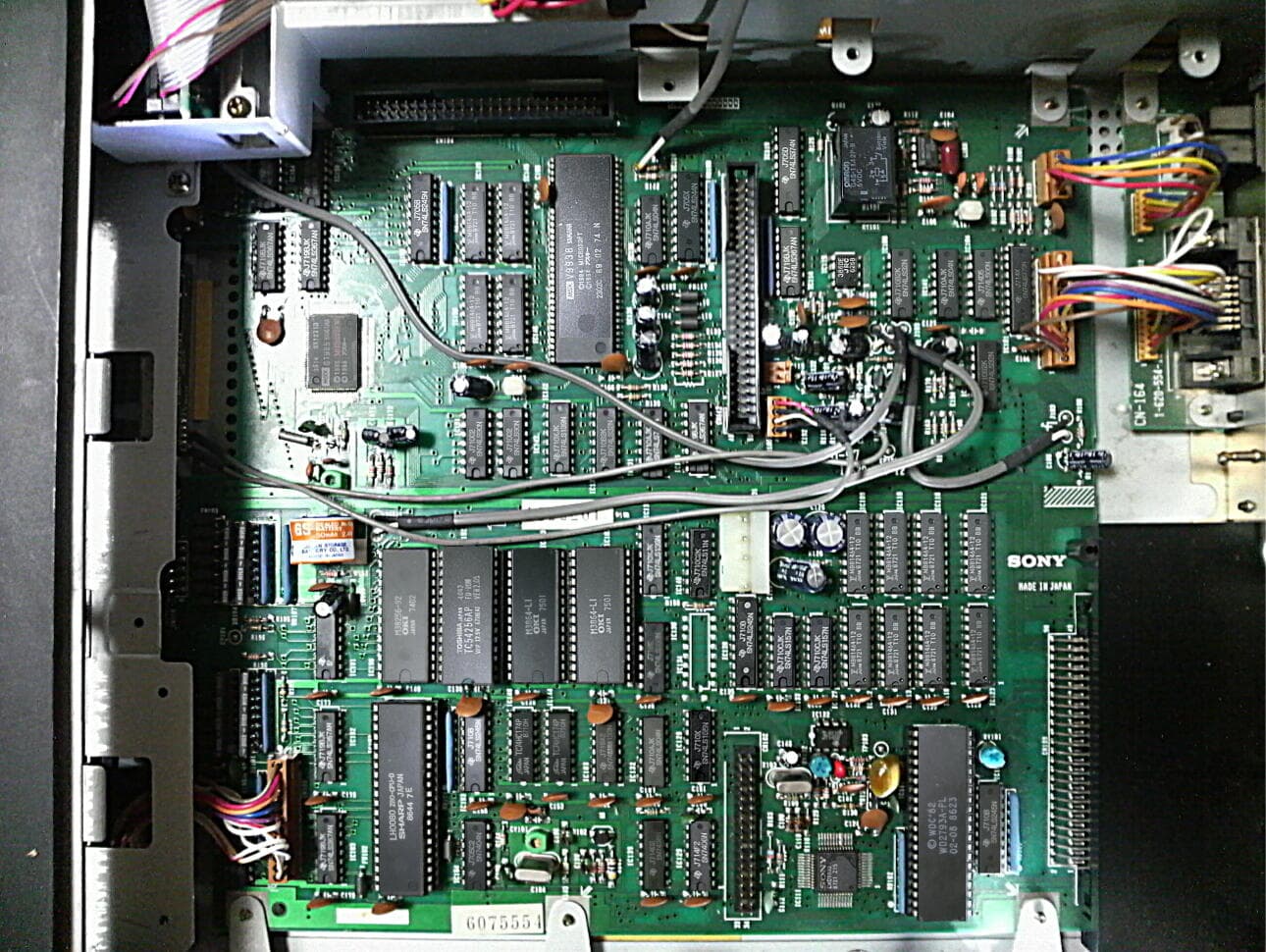

Main board of a black Sony HB-F900, seen from above inside the case. Visible parts include the Yamaha V9938 video processor (top centre), the Sharp LH0080 Z80 processor (bottom left), the WD2793A-PL floppy controller (bottom right) and, at the left, a GS sealed Ni-Cd backup battery labelled 50 mAh, 2.4 V (Japan Storage Battery Co.).
