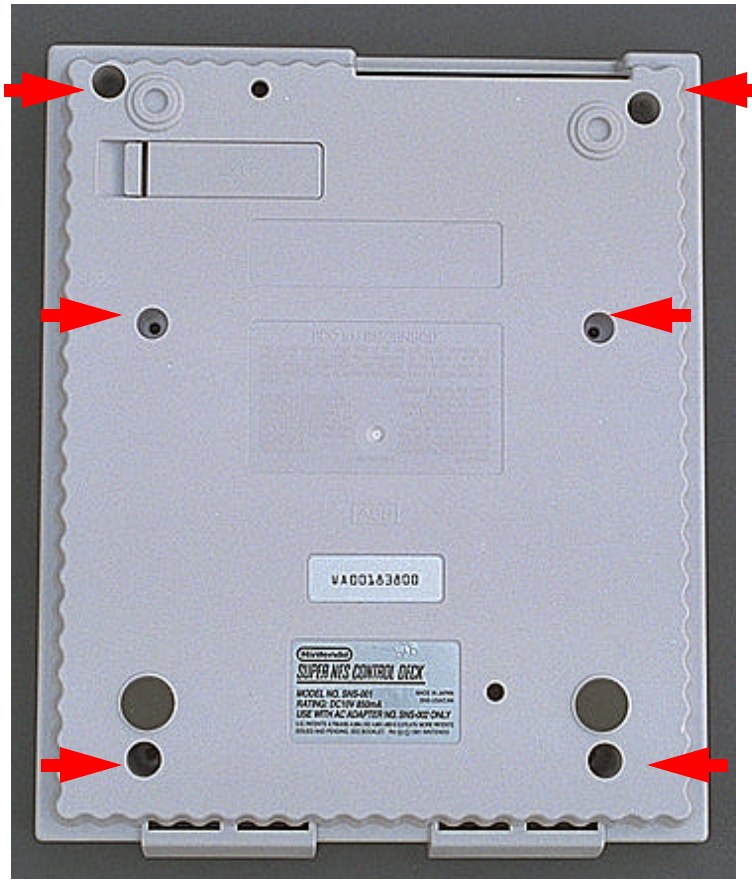

Underside of a North American Super NES (model SNS-001, rating DC 10 V 850 mA, adapter SNS-002), with red arrows marking the six security screws that hold the case together. Nintendo's text with this photo: remove the six security screws from the bottom of the Control Deck and remove the upper housing.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Cropped from Nintendo of America's Authorized Service Center Manual, revision June 2002, chapter 6 (Super NES), page 38, hosted here as File:Nintendo Authorized Service Center Manual June 2002.pdf. Rendered from the PDF at 300 dpi.
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Nintendo of America, Field Service Department.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Nintendo of America Inc. Hosted for preservation and repair reference, with the source cited. Not freely licensed.
