File:Tandy 1000 main logic board component layout (Service Manual p. 103).png
Size of this preview: 800 × 553 pixels. Other resolution: 2,200 × 1,522 pixels.
Original file (2,200 × 1,522 pixels, file size: 300 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

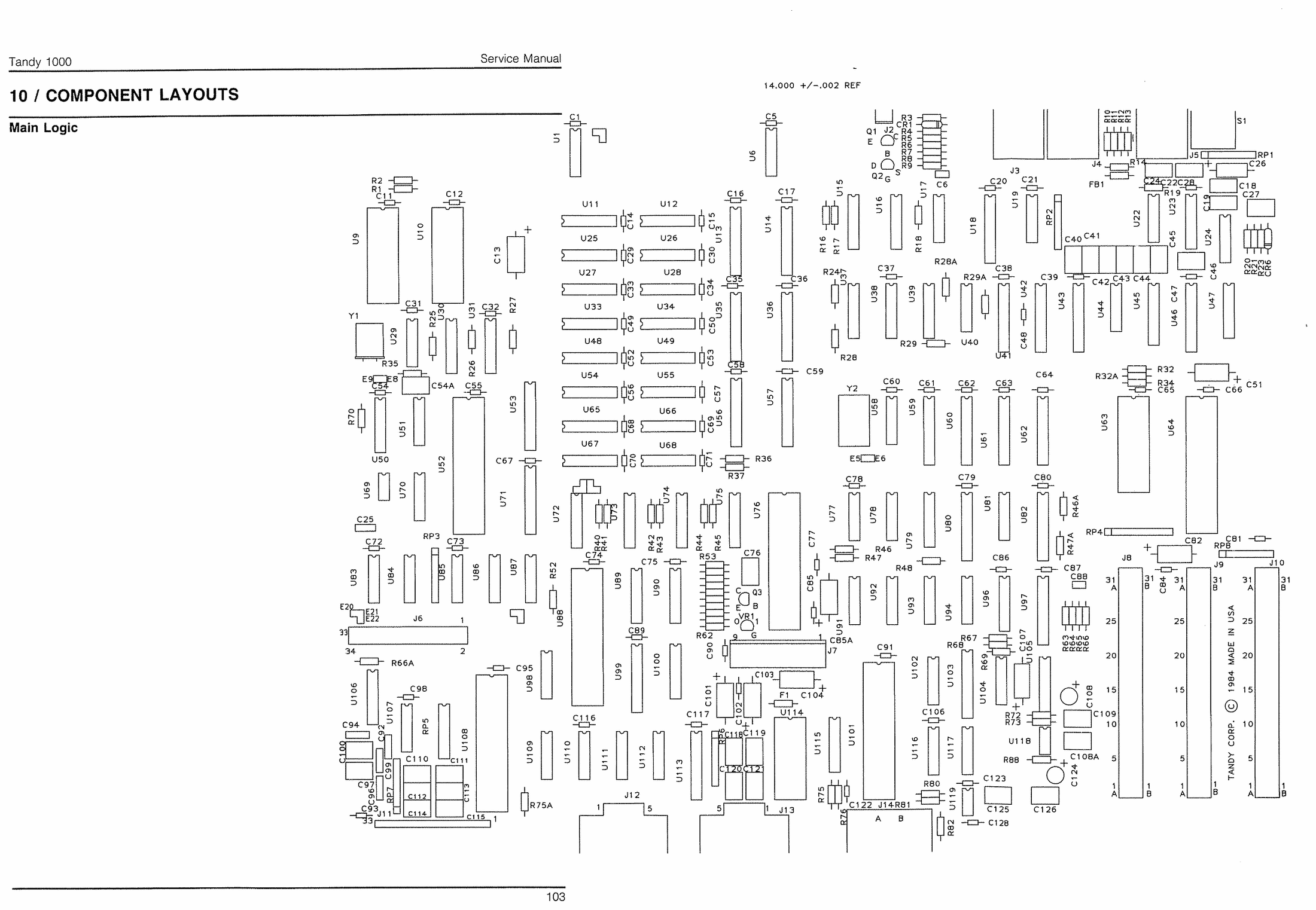

Component layout of the original Tandy 1000 main logic board, from page 103 of Radio Shack's Tandy 1000 Service Manual (25-1000, 1985). It shows the IC positions U1 to U119, the expansion connectors J8 to J10, the DRAM rows and the positions of the capacitors in the parts list.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Tandy 1000 Service Manual (25-1000, 1985).pdf, page 103 (PDF page 107), at 200 dpi, trimmed and reduced to 2200 pixels wide.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Tandy Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1985 Tandy Corporation. Reproduced from the service manual for repair reference.
