File:Tandy 1400 LT power PCB (Service Manual Figure 1-4).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

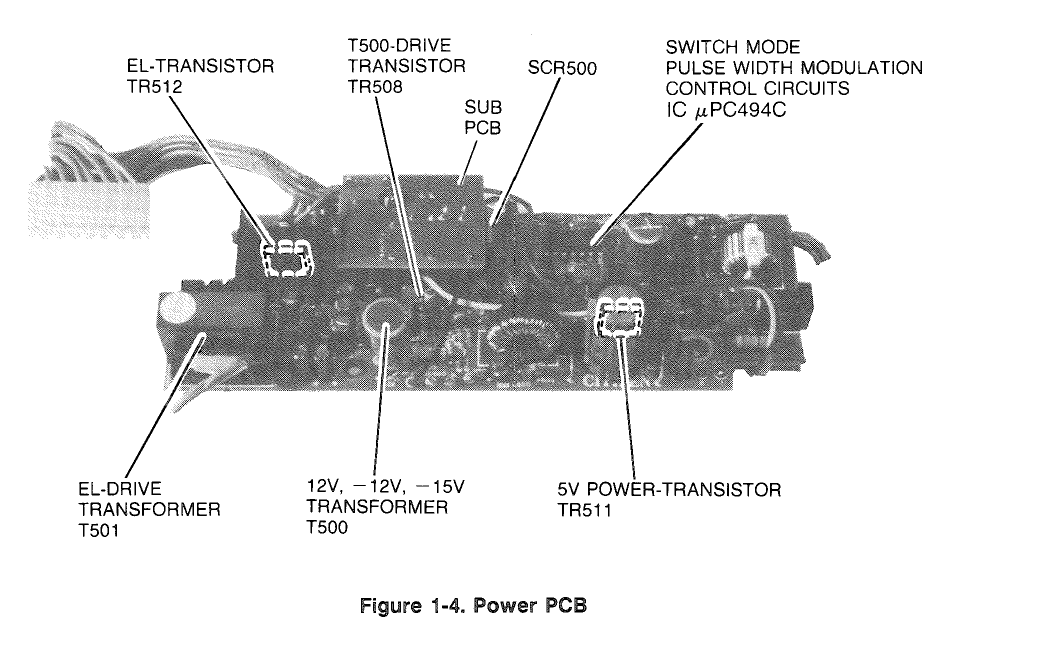

Figure 1-4, "Power PCB", from Tandy's 1988 service manual for the Tandy 1400LT (page 1-5): a photograph of the power source board with the EL drive transistor TR512 and transformer T501, the T500 drive transistor TR508 and the 12 V, -12 V and -15 V transformer T500, the thyristor SCR500, the uPC494C switching regulator controller and the 5 V power transistor TR511 labelled. Rendered at 150 dpi.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Tandy 1400 LT Service Manual (25-3500, 1988).pdf, PDF page 14; originally http://ftp.oldskool.org/pub/tvdog/tandy1000/documents/14ltserv.zip (retrieved 2026-10-22).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Tandy Corporation (Radio Shack).
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1988 Tandy Corporation. Hosted for preservation and repair reference, with the source cited.
