File:Tandy PC-6 exploded view (service manual 26-3672).png
Size of this preview: 457 × 600 pixels. Other resolution: 1,100 × 1,444 pixels.
Original file (1,100 × 1,444 pixels, file size: 201 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

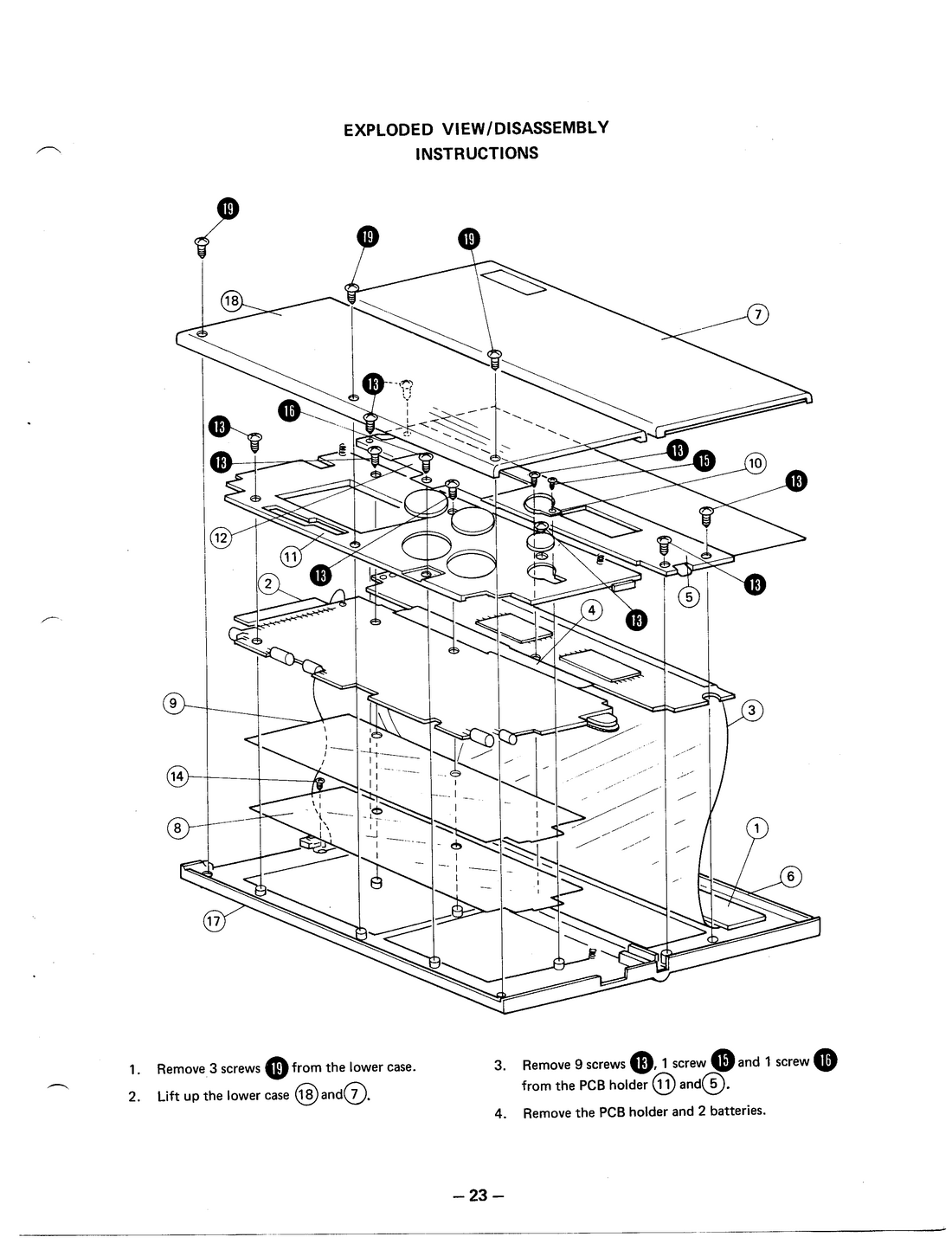

Exploded view and disassembly instructions for the Tandy PC-6 (26-3672), printed page 23 of the service manual, rendered at 300 dpi and reduced. The numbers refer to the mechanical parts list on pages 21 and 22.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Tandy PC-6 Pocket Scientific Computer Service Manual (26-3672).pdf, printed page 23.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Radio Shack, a division of Tandy Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Tandy Corporation. Hosted for preservation and repair reference, with the source cited.
