File:VT220 anode discharge (EK-VT220-PS-003).png
Size of this preview: 512 × 600 pixels. Other resolution: 768 × 900 pixels.
Original file (768 × 900 pixels, file size: 65 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

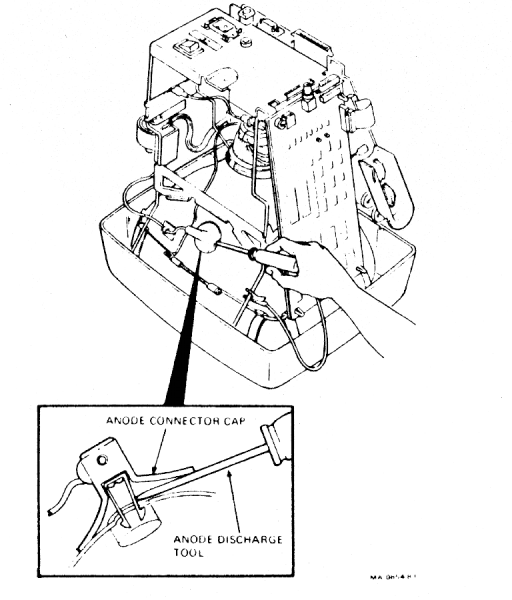

DEC's drawing of the CRT anode being discharged on a VT220 model A, B or C, with the anode discharge tool clipped to the chassis and its probe pushed under the anode connector cap. From p. 30 of the VT220 Pocket Service Guide, EK-VT220-PS-003, rendered from the scan.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:VT220 Pocket Service Guide (EK-VT220-PS-003).pdf, p. 30 (PDF page 42).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Digital Equipment Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Digital Equipment Corporation. Manufacturer documentation, used to identify the product and for repair reference.
