Amiga 500 Joystick and Mouse Port Repair

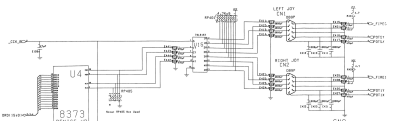

The two game ports on the Rev. 6A/7 schematic, sheet 5: CN1 (left joy) and CN2 (right joy) with their EMI filters, the pull-up pack RP401, the 4.7 Ω feeds R401 and R408 to pin 7, the multiplexer U15 (74LS157) and Denise (U4).

The Amiga 500 has two nine-pin game ports, CN1 and CN2, used for the mouse, joysticks and a light pen; Commodore's manual says the mouse must go in the first port. The four direction or mouse-movement lines of each port pass through EMI filters to U15, a 74LS157 multiplexer that feeds them to Denise (U4). The fire or left mouse button goes to CIA U7, and the right mouse button and the potentiometer inputs go to Paula (U3). Pin 7 of each port carries +5 V through a low-value resistor, R401 for CN1 and R408 for CN2. Plugging or unplugging a controller with the machine on can short a pin to the connector shell, "blowing a resistor (or worse an 8520 CIA chip!)". Each line can be traced from the port to the chip that reads it.

Symptoms

Use a known good mouse and joystick first; Commodore and Perry both start there. Perry's Amiga Troubleshooter chart lists:

Mouse and joystick faults (Perry)

Symptom	Suspects
Mouse pointer does not move; both buttons and the joystick work	EMI401, the 5.1 Ω resistor that supplies 5 V to the mouse; Denise U4; U15 (74LS157)
Mouse or joystick not working	U15; Denise U4; U33 (74F04)
Left mouse button and joystick fire button not working	CIA U7
Right mouse button not working	Paula U3

The game port pin-outs are in Commodore's manual: pins 1 to 4 carry the directions (forward, back, left, right) or the mouse quadrature signals, pin 5 is POT X or the middle button, pin 6 fire or the left button, pin 7 +5 V at up to 100 mA, pin 8 ground, and pin 9 POT Y or the right button.

Tools and parts

• A multimeter and a logic probe or oscilloscope. Sams uses logic readings and pulse checks; Commodore takes its readings with an oscilloscope.
• A known good mouse and joystick.
• AmigaBASIC, for Sams' test programs.
• A Torx T10 screwdriver for the case and top shield.
• Replacement parts as needed: a 74LS157 for U15, an 8520 for U7 (socketed on both board revisions), and a resistor for R401 or R408. The schematic marks R401 and R408 as 4.7 Ω; the Rev. 6A/7 parts list gives 5.1 Ω, 1/2 W, and Perry gives 5.1 Ω.

Procedure

Open the machine

Remove the six T10 Torx screws along the front and rear edges of the bottom case and lift off the top. Unplug the keyboard from CN13 and its ground lead from the drive, lift the keyboard out, then remove the four T10 screws of the top shield, straighten its four tabs and lift it off.

The game port corner of Commodore's Rev. 5 layout: CN2 and CN1 along the rear edge with their EMI filters, U15 and RP401 below.

Find the parts

On Commodore's Rev. 5 layout the game ports are at the right rear of the board, each with a row of EMI filters behind it. U15 sits below C324 and C334, and the resistor pack RP401 lies below the CN1 filters.

Check the +5 V feed

1. With the machine on and nothing plugged in, measure pin 7 of each port to ground. It should read +5 V.
2. If it is missing, measure across R401 (CN1) or R408 (CN2). The schematic feeds each from VCC, with a 0.01 µF filter, E401 or E408, after it.
3. Replace an open resistor. SukkoPera attributes blown resistors and CIAs on these ports to plugging and unplugging controllers with the power on, so connect them only with the machine switched off.

Check the direction and movement lines

Commodore's checks for the first port, CN1, with a joystick connected:

Commodore's control port 0 (CN1) checks

Step	Measure	Expect	If wrong
1	U15 pin 2 (1A)	+5 V, 0 V when pushed UP	U15, EMI411, RP401, CN1
2	U15 pin 3 (1B)	0 V for LEFT	U15, EMI412, RP401, CN1
3	U15 pin 5 (2A)	0 V for DOWN	U15, EMI413, RP401, CN1
4	U15 pin 6 (2B)	0 V for RIGHT	U15, EMI414, RP401, CN1
5	EMI415 pin 2 (FIRE0)	0 V with fire pressed	EMI415, U7, CN1
6	U15 pin 4 (1Y)	+5 V centred, multiplexed signal for up or left	U15, U4, RP404, RP405
7	U15 pin 7 (2Y)	+5 V centred, multiplexed signal for right or down	U15, U4, RP404, RP405

For the second port, CN2, the same checks use U15 pins 11 (up), 10 (left), 14 (down) and 13 (right), filters EMI421-EMI424, fire through EMI425 (FIRE1), and outputs on pins 9 (3Y) and 12 (4Y).

U15's select input, pin 1, is clocked from Agnus. Sams checks for pulses there: if they are missing, suspect Agnus (U2); if they are present and the inputs are right, check U15's outputs on pins 9 and 12 (port 2) or 4 and 7 (port 1), and if those are right, suspect Denise (U4). On the Rev. 6A/7 schematic pin 1 is driven by the signal _CCK_B.

Check the buttons

• Left mouse button or port 1 fire: Sams looks for a logic low at pin 8 of CIA U7 while the button is held. If it is missing, check pin 6 of the port and the mouse; if it is present, suspect U7.
• Port 2 fire: look for a logic low at pin 9 of U7. Sams prints this as "pin 9 of Interface IC U9" and then refers to U7; the schematic puts FIRE1 on U7 pin 9 (port A, bit 7) and FIRE0 on pin 8.
• Right mouse button: look for a logic low at pin 33 of Paula (U3) while it is held. If it is missing, check pin 9 of the port; if it is present, suspect Paula.

Replace a chip

• U15 is a 74LS157. Desolder it and fit the new part with its notch matching the board marking.
• CIA U7 is in a 40-pin socket on both board revisions, so it can be swapped for a known good 8520. U8 is the same part, and Commodore's parts lists give both as 8520 R4 (318029-02).
• Denise (U4) and Paula (U3) are in 48-pin sockets.

Reassemble

Reverse Sams' removal steps: the top shield and its four T10 screws, the keyboard and its ground lead, and the top case with six T10 screws.

Testing

The rear panel of an Amiga 500; the two joystick ports are at the left, marked 1 and 2.

Sams' AmigaBASIC programs read the ports directly. For a joystick in port 2:

10 CLS
20 LOCATE 1,1
30 PRINT "X=";STICK(2)
40 PRINT "Y=";STICK(3)
50 PRINT "BP=";STRIG(2)
60 PRINT "BD=";STRIG(3)
70 GOTO 20

All four numbers read 0 with the joystick centred. X reads −1 for left and 1 for right; Y reads −1 for up and 1 for down. BP changes to −1 briefly when the button is pressed, and BD reads −1 while it is held.

For the mouse in port 1:

10 CLS
20 LOCATE 1,1
30 FOR X = 0 TO 6
40 PRINT X+1,MOUSE(X)
50 NEXT X:GOTO 20

The first number counts left-button presses within two seconds (−1, −2 or −3). The second and third change whenever the mouse moves, the fourth and fifth when the left button is pressed after the mouse has moved, and the sixth and seventh change continuously while the button is held and the mouse moved.
