File:Amstrad Spectrum +2 cassette mechanism exploded view (service manual).png
Size of this preview: 461 × 600 pixels. Other resolution: 1,383 × 1,800 pixels.
Original file (1,383 × 1,800 pixels, file size: 179 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

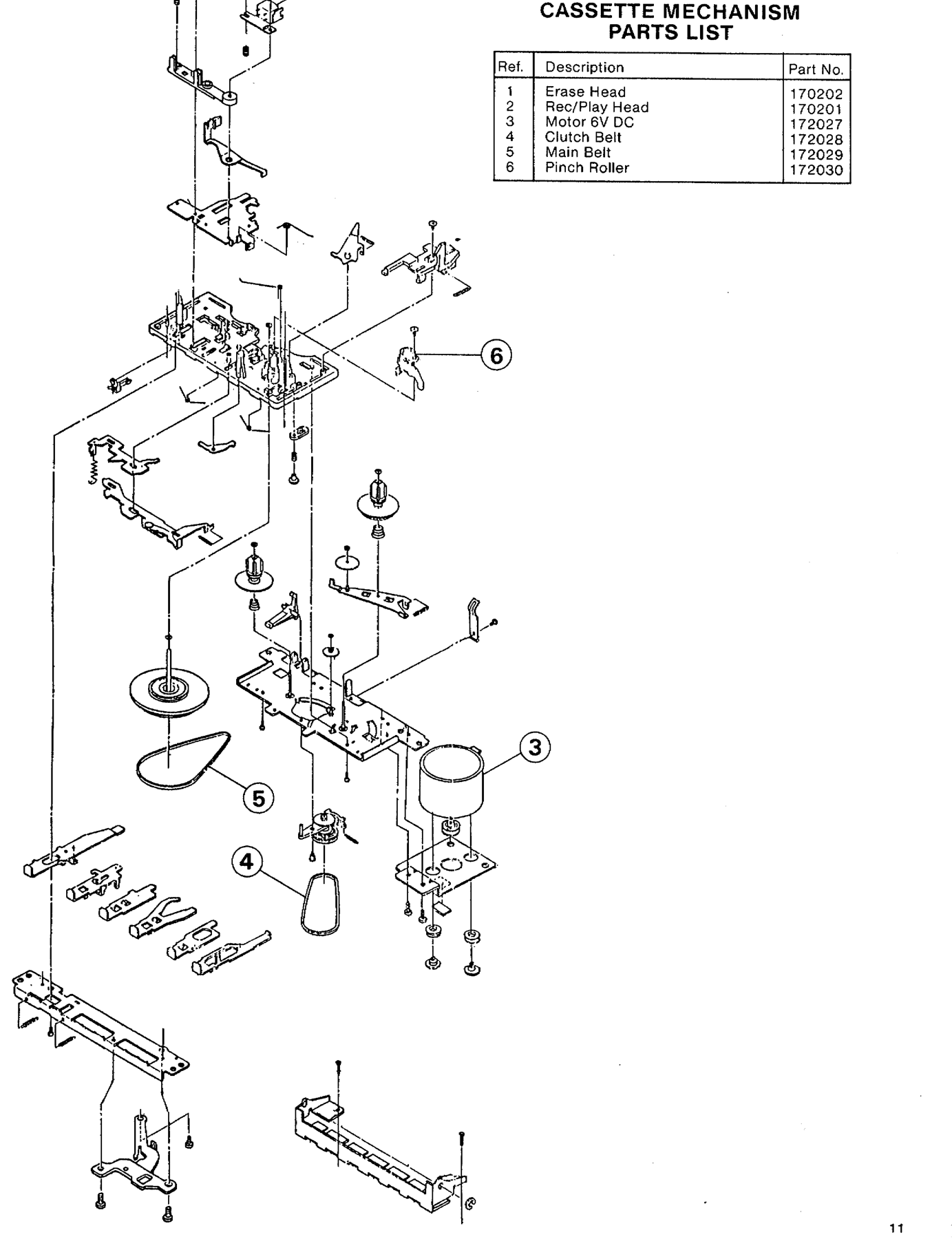

Amstrad's exploded view and parts list of the grey ZX Spectrum +2 Datacorder cassette mechanism: erase head (1, part 170202), record/play head (2, 170201), 6 V DC motor (3, 172027), clutch belt (4, 172028), main belt (5, 172029) and pinch roller (6, 172030). From printed page 11 of the Spectrum +2 Service Manual.
