File:AppleVision 850 and 850AV exploded view (Service Source).png
Size of this preview: 418 × 600 pixels. Other resolution: 1,239 × 1,778 pixels.
Original file (1,239 × 1,778 pixels, file size: 878 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

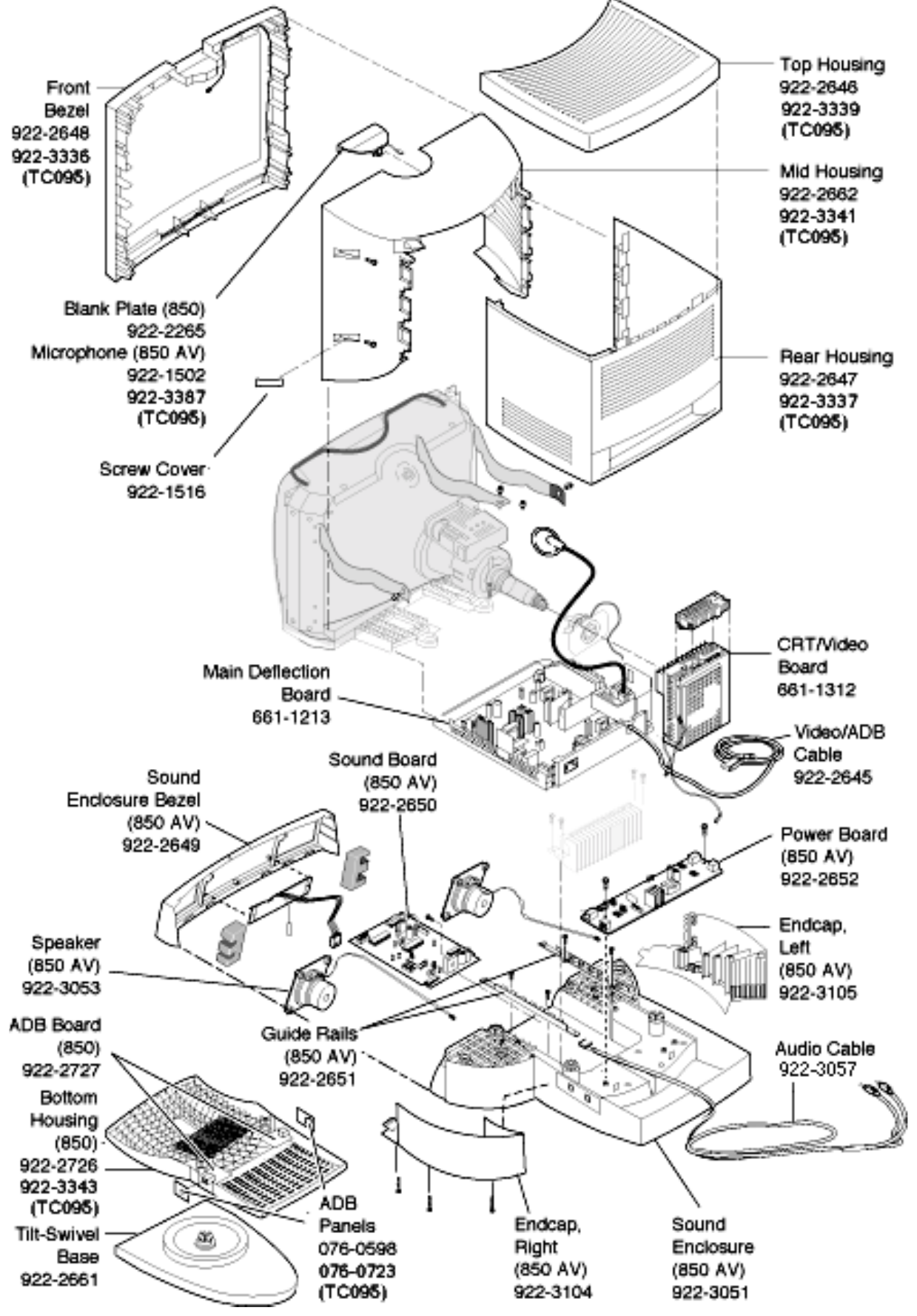

Exploded view of the AppleVision 850 and 850AV (20-inch ColorSync) displays with Apple service part numbers, including the TCO 95 housing parts. Rendered from page 177 of Apple's 20" ColorSync Displays Service Source, hosted as File:Colorsync 20 displays.pdf. Used on Apple AppleVision 850 Display General Maintenance.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Apple Service Source (retrieved 2026-10-02).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed; used to identify the product and for repair reference, with the source cited.
