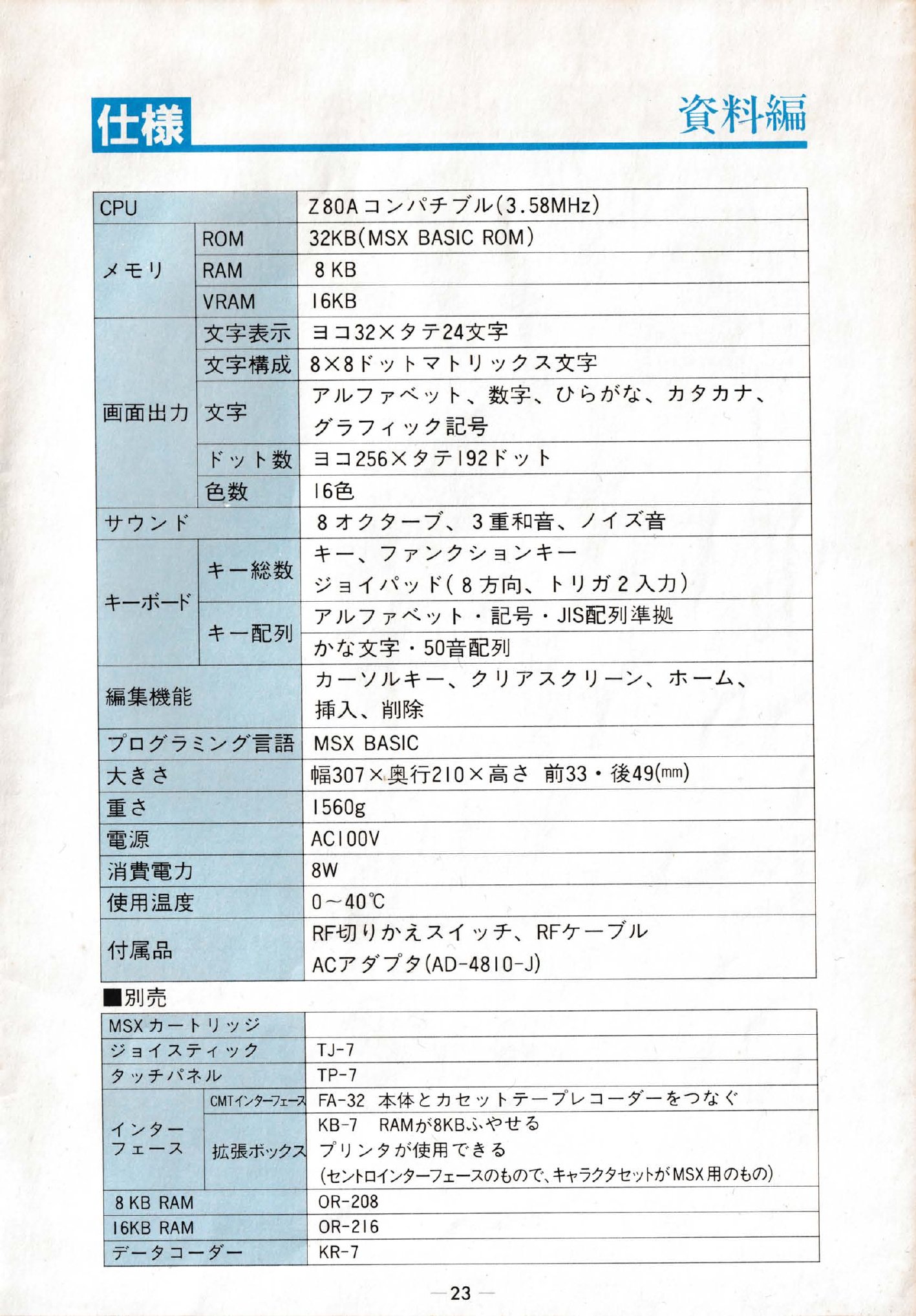

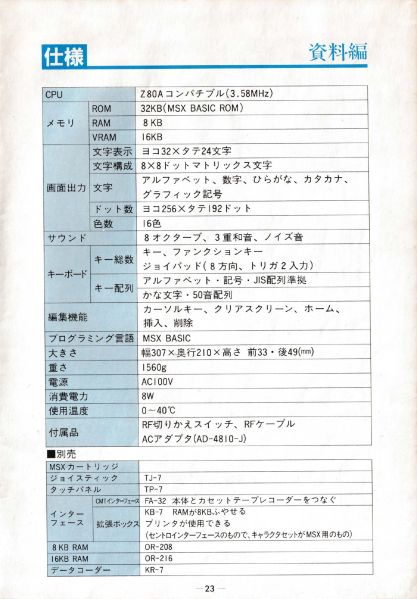

Printed page 23 of Casio's Japanese instruction manual for the PV-7, 仕様 (specifications): Z80A-compatible CPU at 3.58 MHz, 32 KB MSX BASIC ROM, 8 KB RAM, 16 KB VRAM, 32 × 24 text, 256 × 192 dots, 16 colours, sound of 8 octaves and 3 voices with noise, joypad with 8 directions and 2 triggers, 307 × 210 mm, height 33 mm at the front and 49 mm at the rear, 1560 g, AC 100 V, 8 W, 0 to 40 °C, supplied with an RF switch box, RF cable and AC adaptor AD-4810-J; options TJ-7, TP-7, FA-32, KB-7, OR-208, OR-216 and KR-7.
Source
[edit | edit source]
Rendered at 60 dpi from the Casio PV-7 instruction manual (取扱説明書), Internet Archive item casio-msx-pv-7, https://archive.org/details/casio-msx-pv-7 (uploaded 31 May 2024). Retrieved 2026-10-21. Hosted here as File:Casio PV-7 Instruction Manual.pdf.
Author
[edit | edit source]
Casio Computer Co., Ltd.
Licence
[edit | edit source]
Copyright Casio Computer Co., Ltd. Hosted for repair reference, with the source cited.
