File:ColecoVision Expansion Module 2 hook-up (owners manual drawing).png
Size of this preview: 597 × 600 pixels. Other resolution: 1,030 × 1,035 pixels.
Original file (1,030 × 1,035 pixels, file size: 1.17 MB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

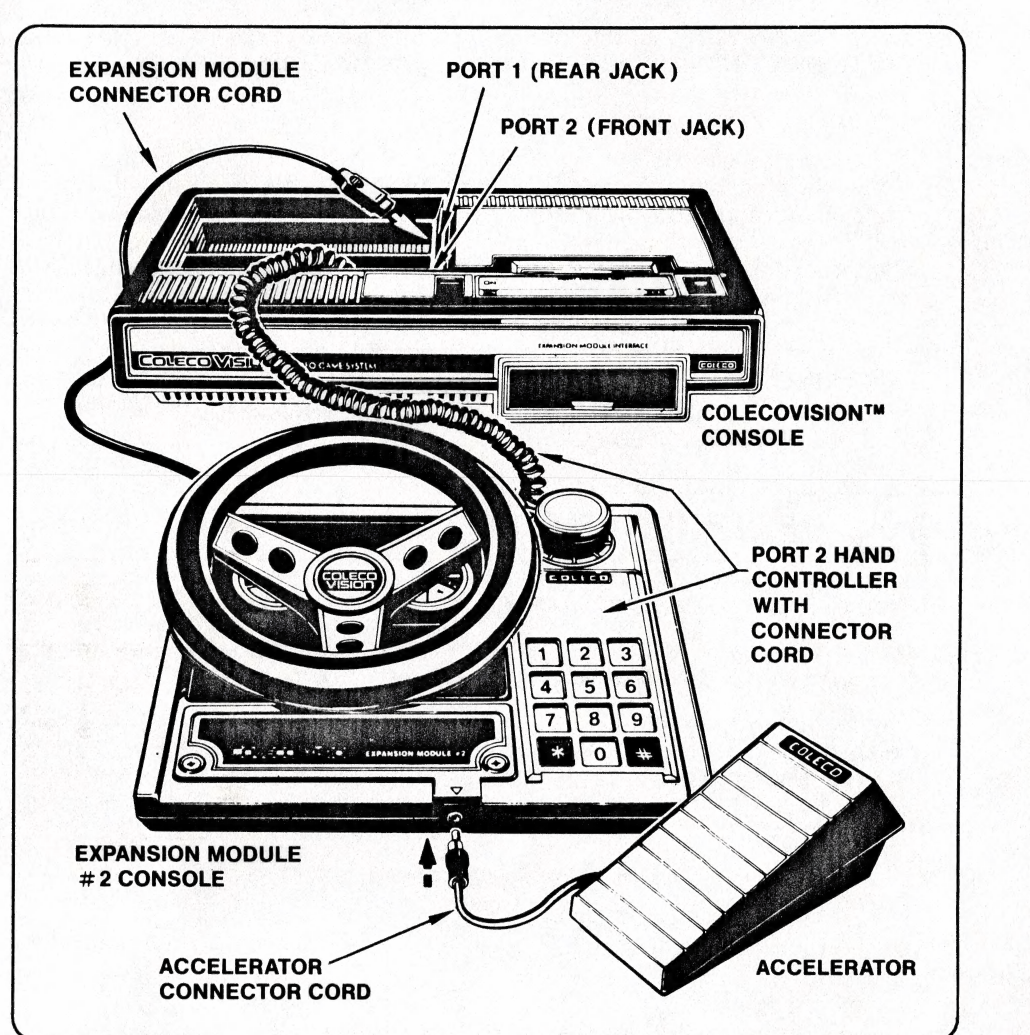

Coleco's hook-up drawing from page 3 of the Expansion Module #2 owner's manual: the module's connector cord going to port 1 (the rear jack) of the ColecoVision, the port 2 hand controller clipped into the module, and the accelerator pedal plugged into the jack on the front of the module. Rendered at 200 dpi and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:ColecoVision Expansion Module 2 Owners Manual Guide 75701B.pdf, page 3.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Coleco Industries, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Coleco Industries, Inc. Reproduced from the hosted manual for identification and repair reference.
