File:Coleco Telstar Alpha bottom view (Guide 57659B).png
Size of this preview: 800 × 452 pixels. Other resolution: 2,196 × 1,240 pixels.
Original file (2,196 × 1,240 pixels, file size: 2.67 MB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

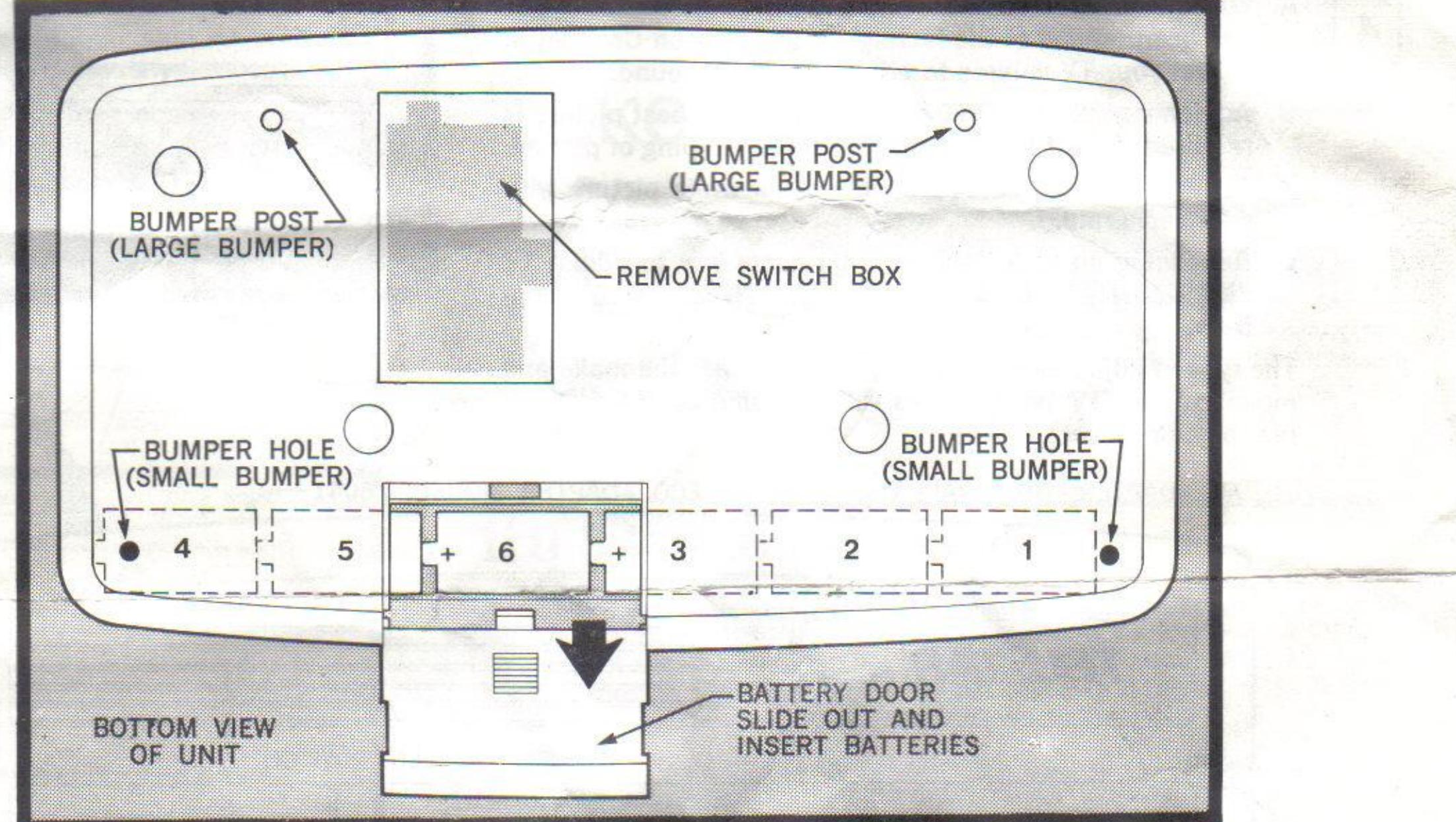

The "bottom view of unit" drawing from page 1 of Coleco's installation instructions for the Coleco Telstar Alpha (Guide No. 57659 B, 1977): the slide-out battery door, the order and polarity of the six C cells, the recess that holds the antenna switch box, and the posts and holes for the large and small rubber bumpers.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 1 of File:Coleco Telstar Alpha Installation Instructions (Guide 57659B).pdf, rendered at 150 dpi (2026-10-19).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Coleco Industries, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1977 Coleco Industries, Inc. Reproduced from the manufacturer's instructions for repair reference, with the source cited.
