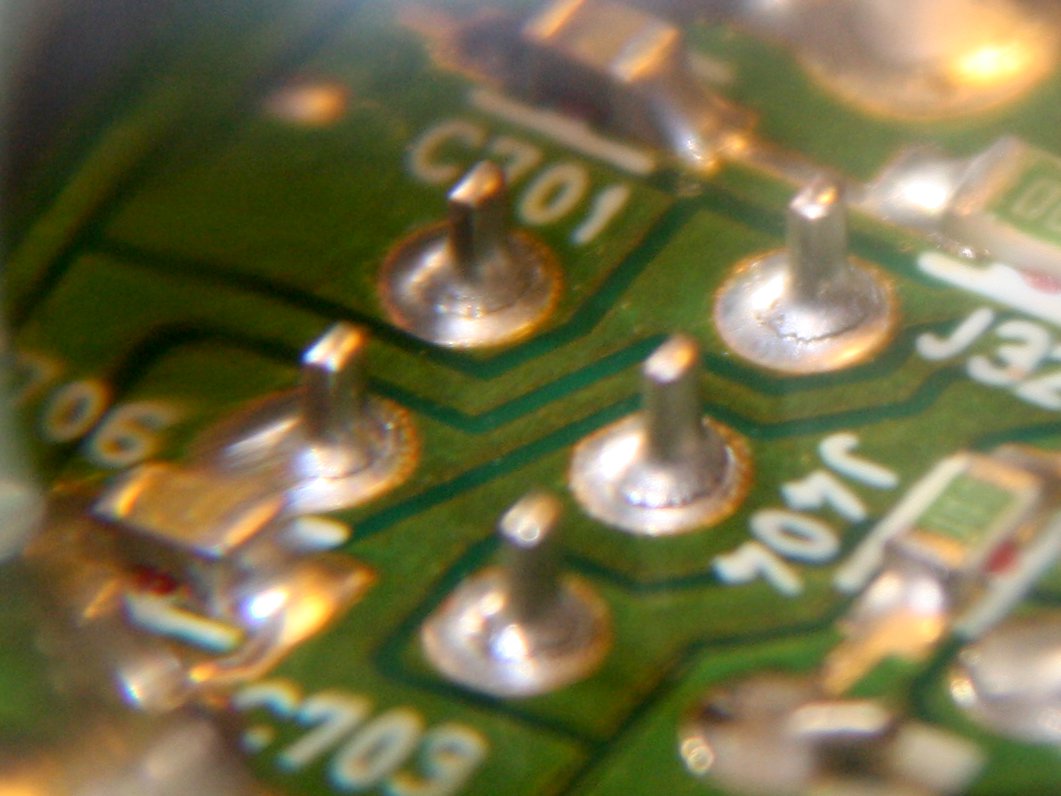

Through-hole solder joints near C701 and J704 on a circuit board, with ring-shaped cracks visible in the solder round the component leads. Copied from Wikimedia Commons, where the file is titled Brocken Soldering joint-Closer Look Up.
