File:NASA-STD-8739.3 Figures 8-16 and 8-17, clinched termination and lead bend.png
Summary
[edit | edit source]

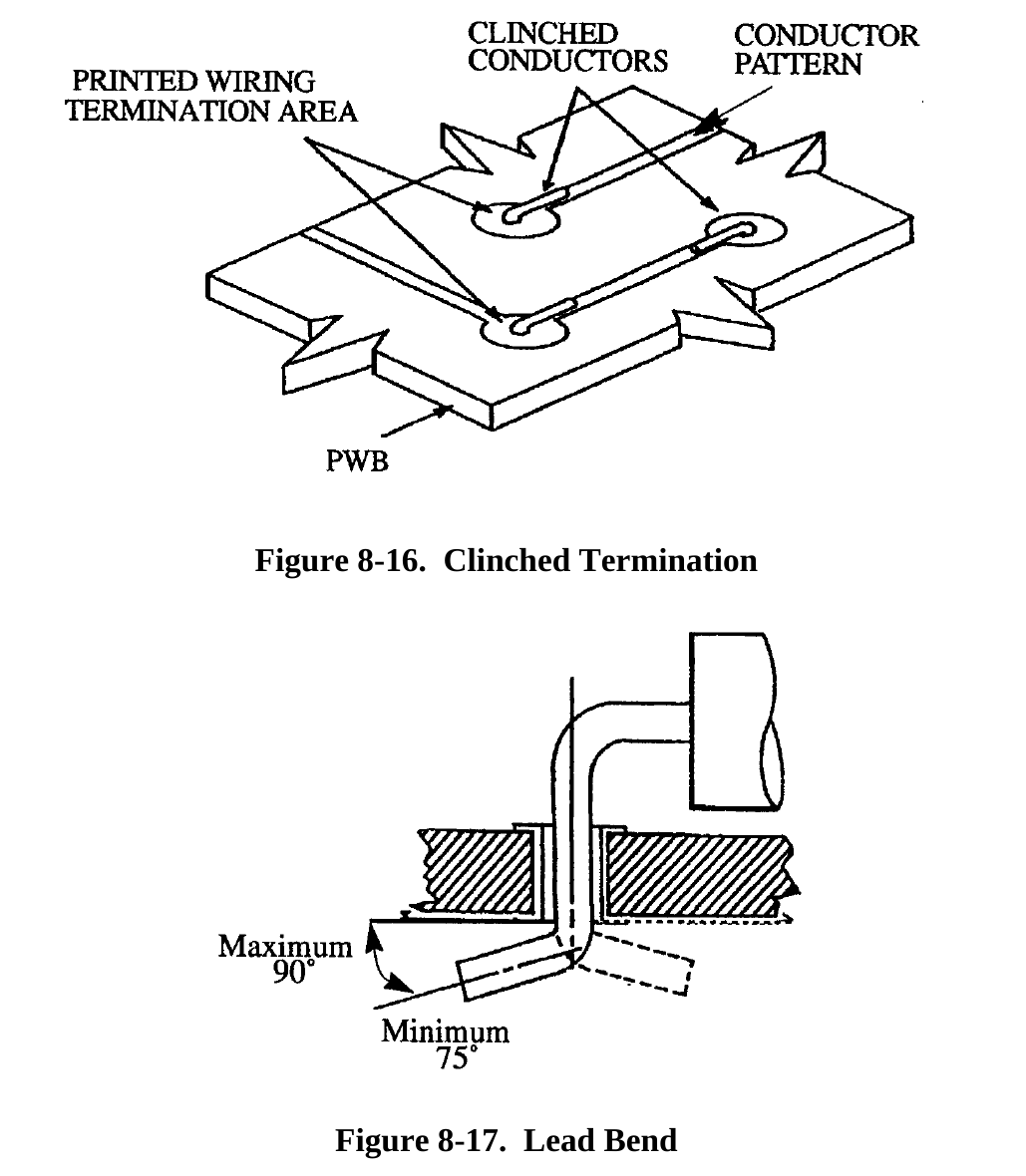

Line drawings from NASA-STD-8739.3, section 8.5.2: Figure 8-16, Clinched Termination, showing clinched conductors bent along the conductor pattern on their printed wiring termination areas, and Figure 8-17, Lead Bend, showing a clinched lead bent between 75 degrees (minimum) and 90 degrees (maximum) from the vertical. Cropped from PDF page 47.
Source
[edit | edit source]
NASA, NASA-STD-8739.3 Soldered Electrical Connections, with Change 4 (approved 1997-12-15, Change 4 dated 2011). Copy downloaded from EverySpec, https://everyspec.com/NASA/NASA-NASA-STD/NASA-STD-8739x3_CHG-4_33216/ (retrieved 2026-10-25). The standard was cancelled on 17 October 2011, when NASA adopted IPC J-STD-001ES.
Author
[edit | edit source]
NASA
Licence
[edit | edit source]
Public domain. This is a work of the United States Government (NASA), not subject to copyright in the United States.
