File:NASA-STD-8739.3 cold and overheated solder connections.png

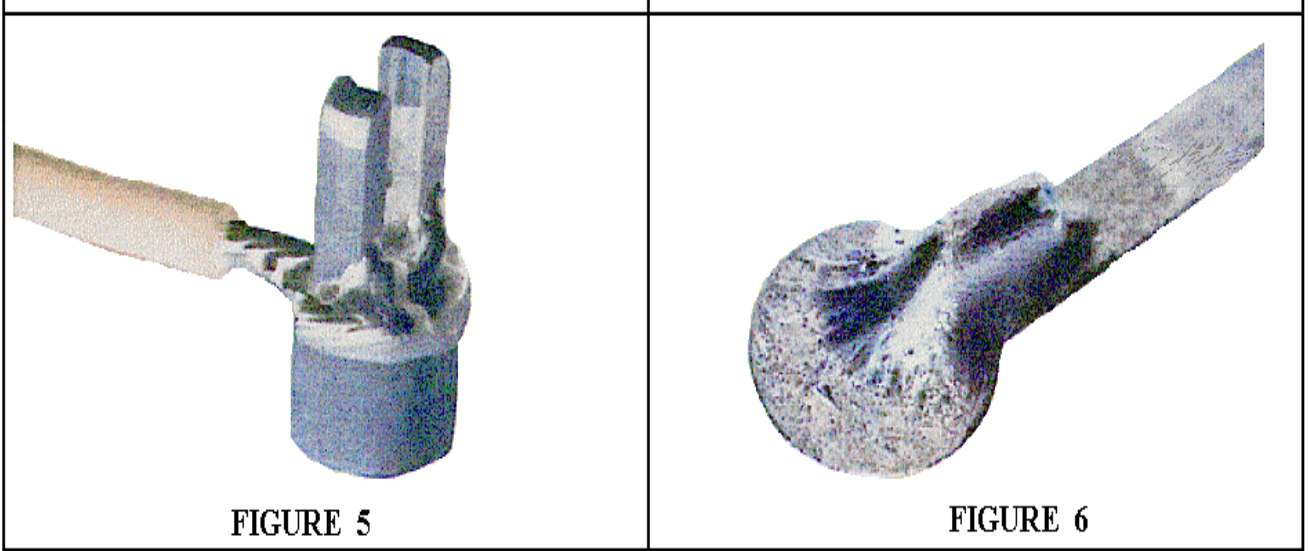

Photographs from Appendix A, Part II (Typical unacceptable solder connections) of NASA-STD-8739.3: Figure 5, a cold solder connection on a terminal, and Figure 6, an overheated solder connection on a round lead to a circular pad. Cropped from PDF page 84; the captions are on page 85.

NASA, NASA-STD-8739.3 Soldered Electrical Connections, with Change 4 (approved 1997-12-15, Change 4 dated 2011). Copy downloaded from EverySpec, https://everyspec.com/NASA/NASA-NASA-STD/NASA-STD-8739x3_CHG-4_33216/ (retrieved 2026-10-25). The standard was cancelled on 17 October 2011, when NASA adopted IPC J-STD-001ES.

NASA

Public domain. This is a work of the United States Government (NASA), not subject to copyright in the United States.
