File:NASA-STD-8739.3 dewetting and nonwetting.png

Size of this preview: 800 × 327 pixels. Other resolution: 1,308 × 534 pixels.

Original file (1,308 × 534 pixels, file size: 293 KB, MIME type: image/png)

Summary

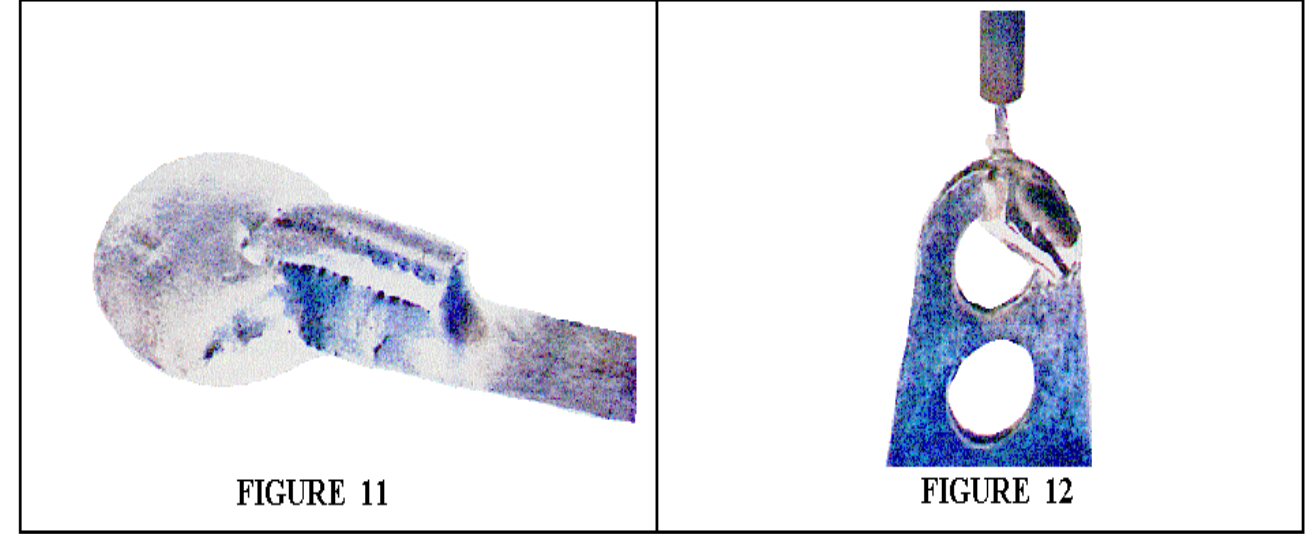

Photographs from Appendix A, Part II of NASA-STD-8739.3: Figure 11, dewetting on a lapped lead, and Figure 12, nonwetting on a terminal. Cropped from PDF page 86; the captions are on page 87.

Source

NASA, NASA-STD-8739.3 Soldered Electrical Connections, with Change 4 (approved 1997-12-15, Change 4 dated 2011). Copy downloaded from EverySpec, https://everyspec.com/NASA/NASA-NASA-STD/NASA-STD-8739x3_CHG-4_33216/ (retrieved 2026-10-25). The standard was cancelled on 17 October 2011, when NASA adopted IPC J-STD-001ES.

Author

NASA

Licence

Public domain. This is a work of the United States Government (NASA), not subject to copyright in the United States.
