File:Philips CDI 205 power supply circuit diagram (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

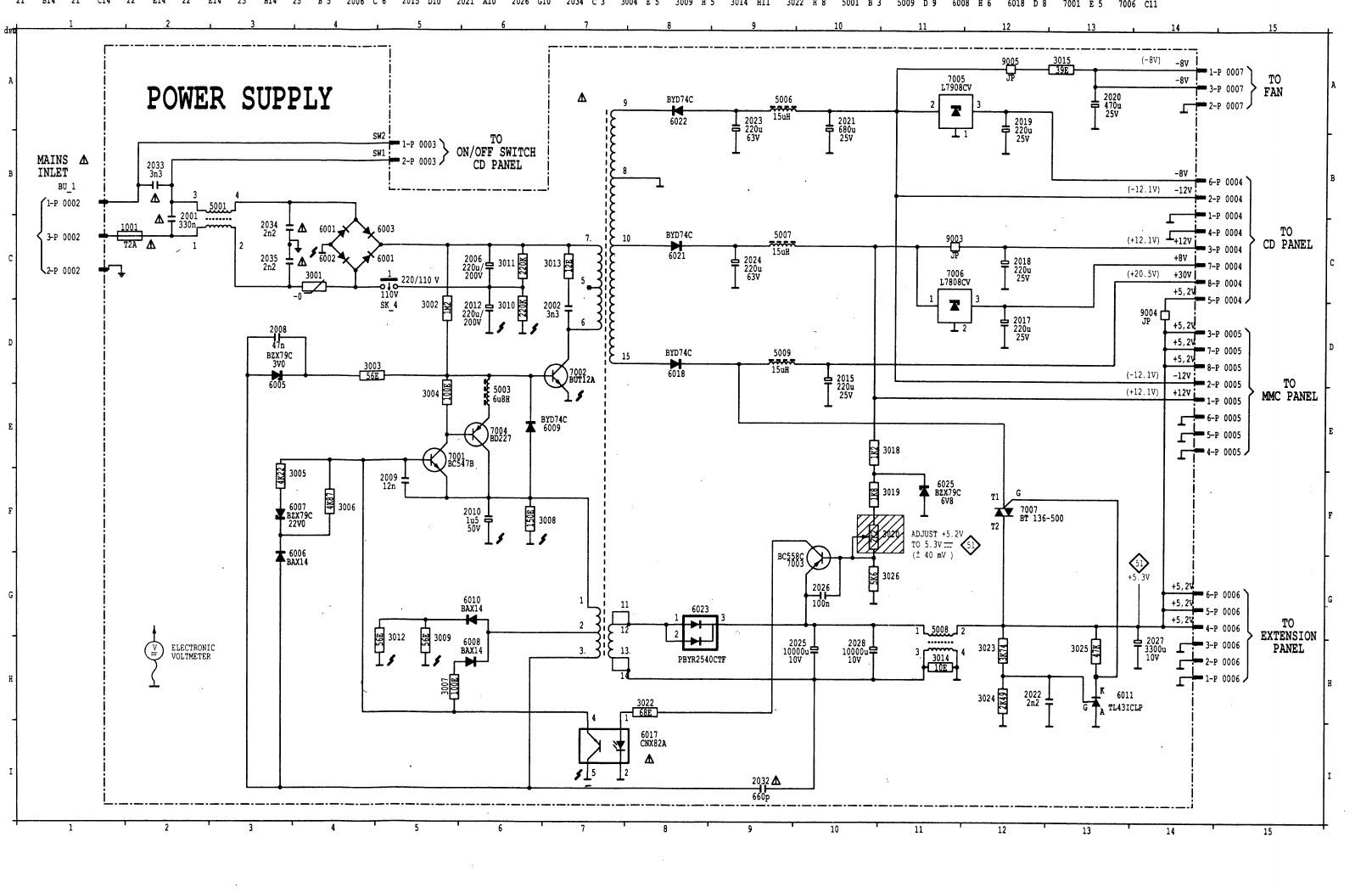

Circuit diagram of the power supply panel (1006) of the Philips CDI 205 CD-i player, section 6.3.2 of the CDI 205/00/05 service manual (4822 725 24103), PDF page 33. It shows the mains input and fuse 1001, the switching stage around 7002, the secondary rectifiers and regulators, the +5.2 V adjustment 3020, and the outputs to the fan, CD panel, MMC panel and extension panel, with all capacitor values.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 33 of File:Philips CDI 205 Service Manual.pdf, which came from https://www.icdia.co.uk/svcmanuals/cdi205.pdf (retrieved 2026-10-21).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips Interactive Media Systems, Service & Support.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Philips. Hosted for preservation and repair reference, with the source cited.
