File:Philips CDI 470 exploded view (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

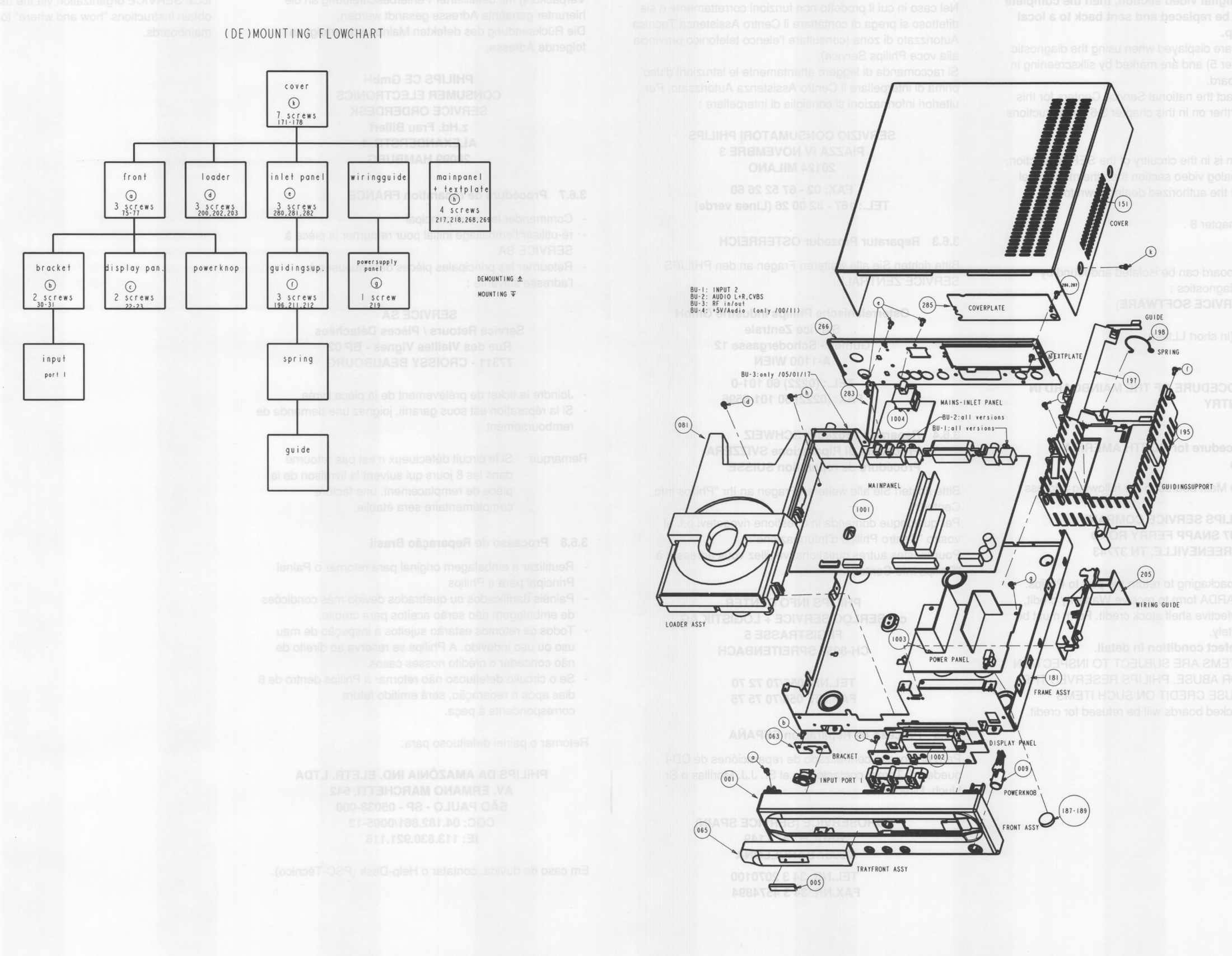

Exploded view of the Philips CDI 470 cabinet with the (de)mounting flowchart, section 4.1 of the Philips service manual CDI 470/00/05/06 (page PCS 85 609). The flowchart gives the screw positions for each part: cover (7 screws, 171 to 178), front (3, 75 to 77), loader (3, 200, 202, 203), inlet panel (3, 280 to 282), main panel and text plate (4, 217, 218, 268, 269), bracket (2, 30 and 31), display panel (2, 22 and 23), guiding support (3, 196, 211, 212) and power supply panel (1, 219). Rendered at 300 dpi and reduced to 2200 px wide.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Page 12 of File:Philips CDI 470 Service Manual.pdf. The New International CD-i Association (ICDIA), CD-i service manuals page, http://www.icdia.co.uk/svcmanuals/index.html, file cdi470.pdf (retrieved 2026-10-21). The scan carries the watermark of www.freeservicemanuals.info, which ICDIA names as the source of most of its service manual PDFs.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips Service & Support, Philips Media Systems
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Philips. Hosted for preservation and repair reference, with the source cited.
