File:Philips CDI 470 power supply PCB layout (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

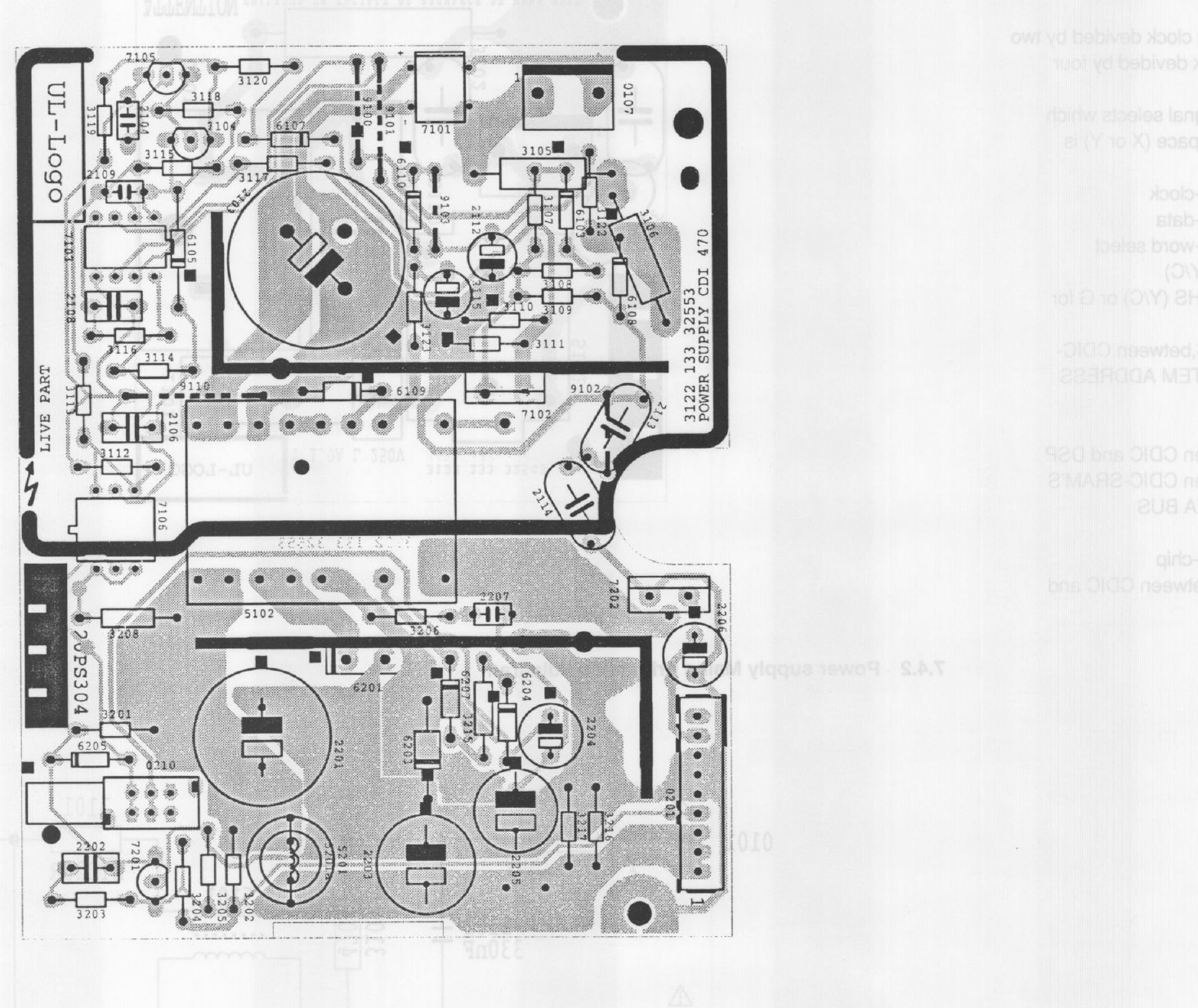

Component layout of the main power supply board 20PS304 (marked 3122 133 32553, POWER SUPPLY CDI 470) of the Philips CDI 470, section 7.4.3 of the Philips service manual CDI 470/00/05/06 (page PCS 85 620). The live primary side, with the 100 µF 400 V capacitor 2103, is outlined at the top; the secondary electrolytics 2201 to 2206 are at the bottom. Rendered at 200 dpi.
