File:Philips CDI 605T CD panel component layout.png
Size of this preview: 800 × 289 pixels. Other resolution: 2,362 × 854 pixels.
Original file (2,362 × 854 pixels, file size: 1.58 MB, MIME type: image/png)
Summary
[edit | edit source]

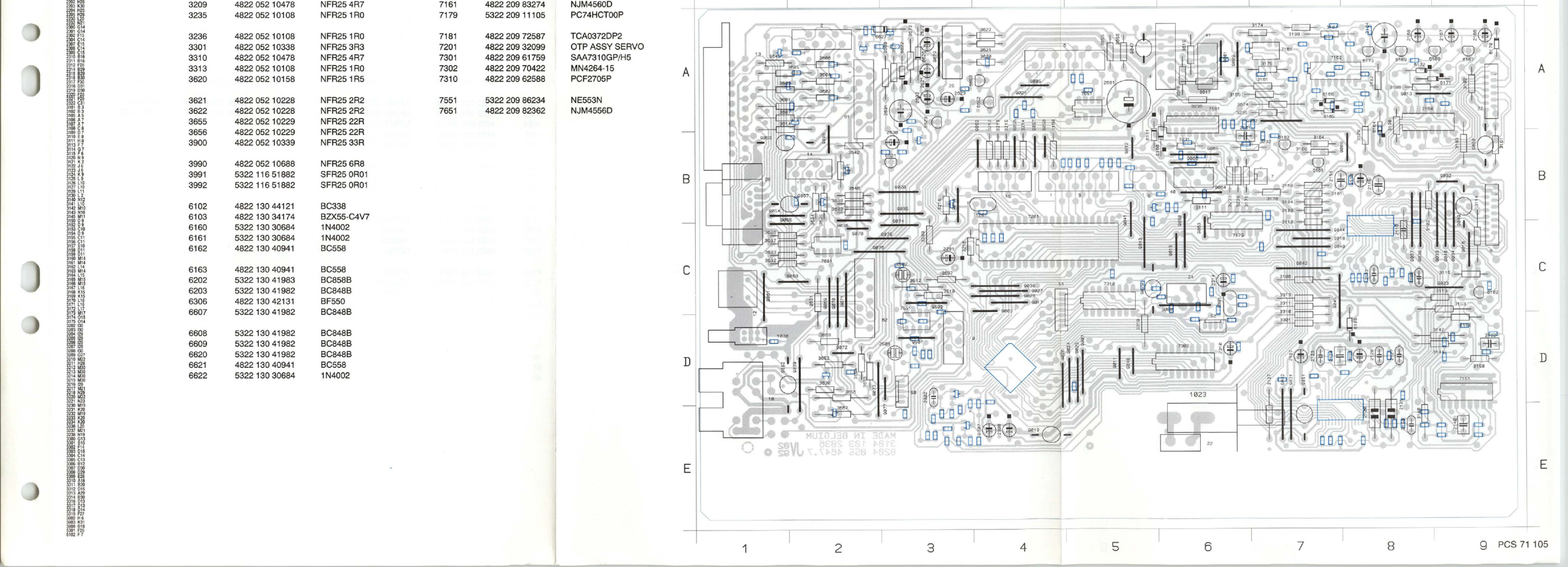

Page 19 of the Philips CDI 605T service manual: the short CD panel parts list (section 6.4.2) on the left and the CD panel PCB component side view with its location grid (section 6.4.3) on the right. The board silkscreen reads "Made in Belgium 3104 103 2836".
Source
[edit | edit source]
Rendered from File:Philips CDI 605T Service Manual.pdf, page 19, at 150 dpi and scaled to two thirds; original scan from https://icdia.co.uk/svcmanuals/cdi605t.pdf (retrieved 2026-10-20).
Author
[edit | edit source]
Philips Interactive Media Systems, Service & Support.
Licence
[edit | edit source]
Copyright Philips Interactive Media Systems. Hosted for repair reference, with the source cited.
