File:Philips P2000M monitor cabinet power supply schematic (fig 4.16).jpg
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

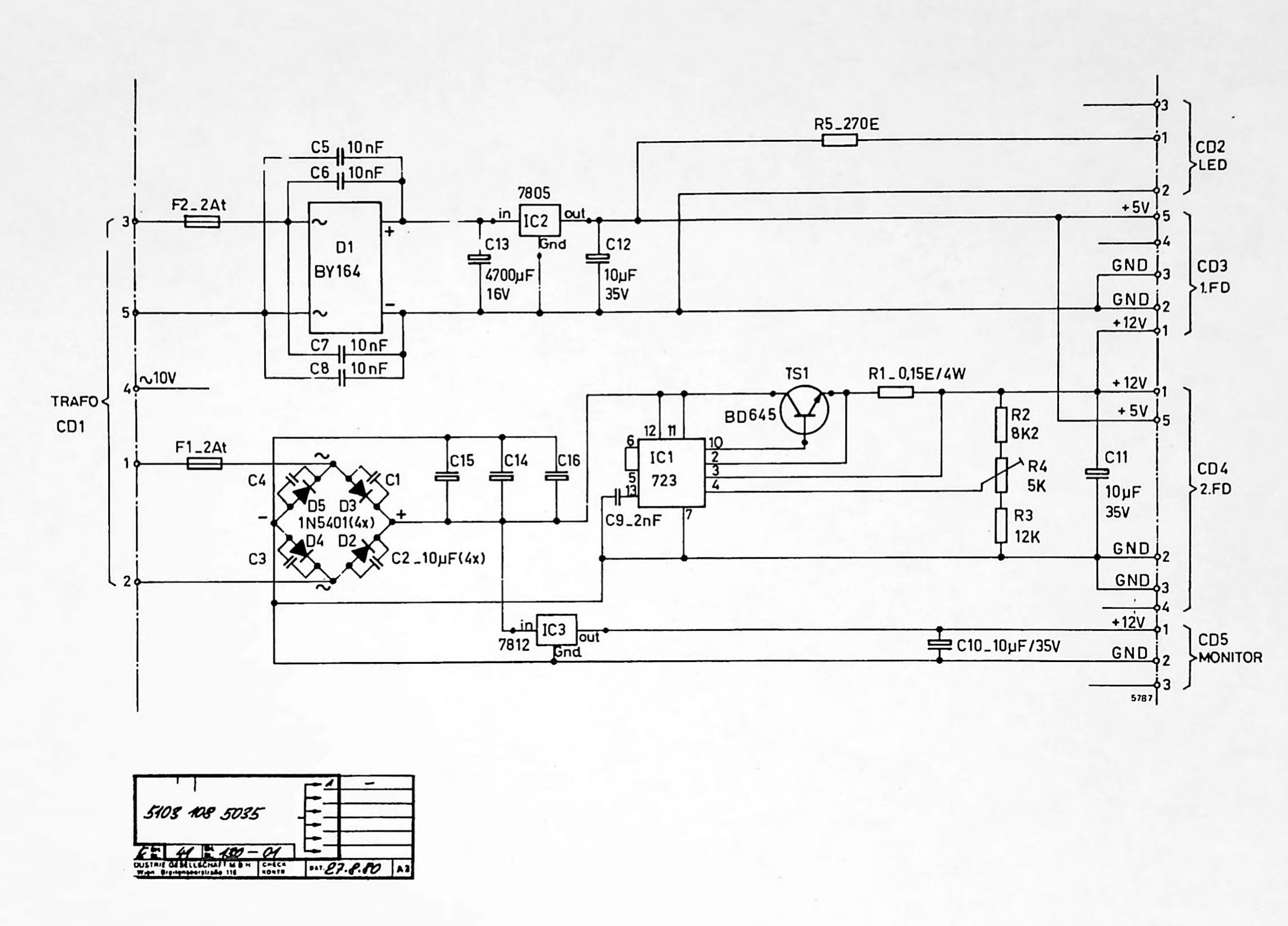

Figure 4.16, Power supply monitor cabinet, from page 4-35 of the Philips P2000 Field Support manual (8111): drawing 5103 108 5035 dated 27.8.80, with the BY164 bridge D1, C13 (4700 µF 16 V) and the 7805 IC2 for the +5 V floppy supply, the 1N5401 bridge D2 to D5 with C14 to C16, the 723 regulator IC1 and BD645 TS1 for the adjustable +12 V floppy supply (R4), and the 7812 IC3 for the monitor.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Internet Archive item p-2000-service-manual ("P2000 Service Manual", uploaded by the HomeComputerMuseum, Helmond), file "P2000 Service Manual" page images (retrieved 2026-10-21).
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Philips.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Philips. Hosted for preservation and repair reference, with the source cited.
