File:Philips Videopac G7000 repair method chart (SM CS 75 068).png
Size of this preview: 544 × 599 pixels. Other resolution: 1,480 × 1,630 pixels.
Original file (1,480 × 1,630 pixels, file size: 430 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

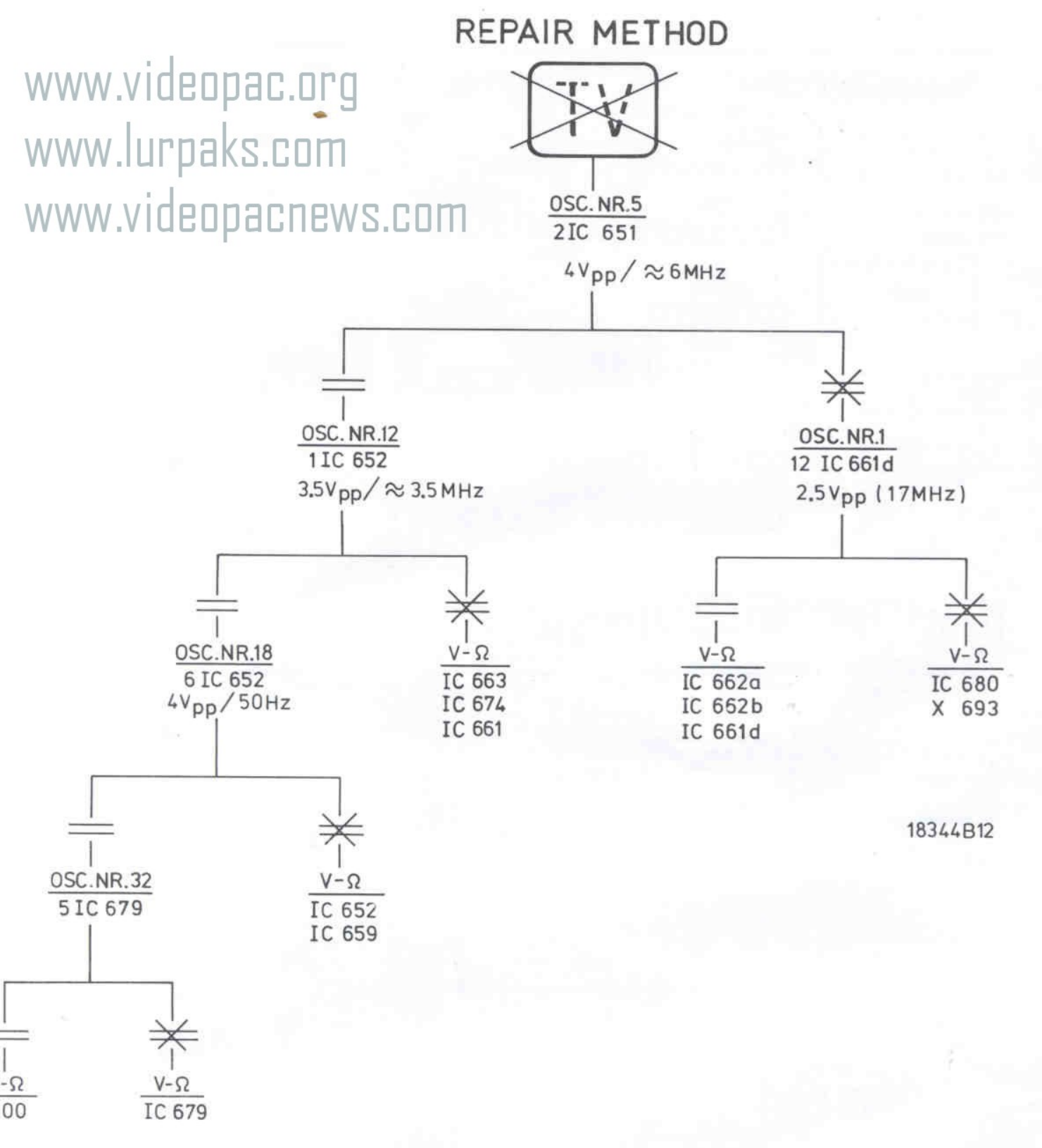

The "repair method" chart from the G7000/20/35/53 service manual (drawing 18344B12): for a console with no picture, it starts at oscillogram 5 on IC651 pin 2 and branches through IC652 pins 1 and 6, IC661d pin 12 and IC679 pin 5 to the parts to check.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 11 of File:Philips Videopac G7000 Service Manual CS 75 068.pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Philips. Reproduced from the service manual for repair reference.
