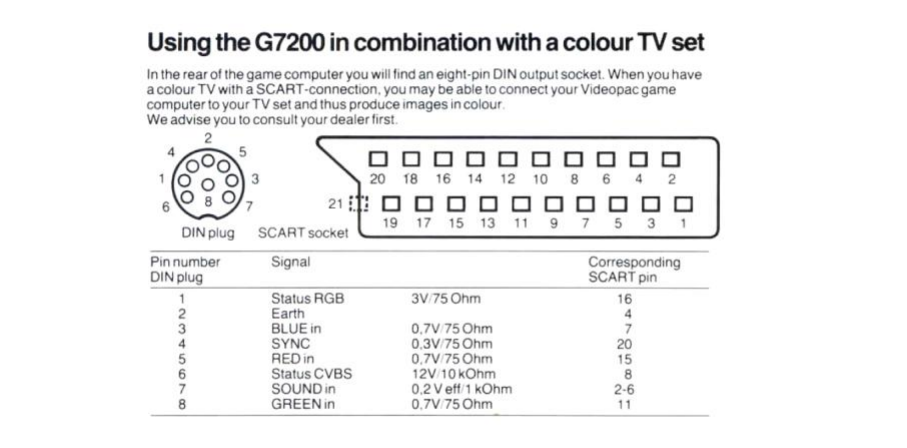

The table from the English instructions for use giving the signals on the G7200's eight-pin DIN output socket and the matching SCART pins: 1 status RGB (3 V, 75 Ω) to SCART 16, 2 earth to 4, 3 blue (0.7 V, 75 Ω) to 7, 4 sync (0.3 V, 75 Ω) to 20, 5 red to 15, 6 status CVBS (12 V, 10 kΩ) to 8, 7 sound (0.2 V rms, 1 kΩ) to 2 and 6, 8 green to 11.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 4 of File:Philips Videopac G7200 Instructions for Use.pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Philips. Reproduced from the instructions for repair reference.
