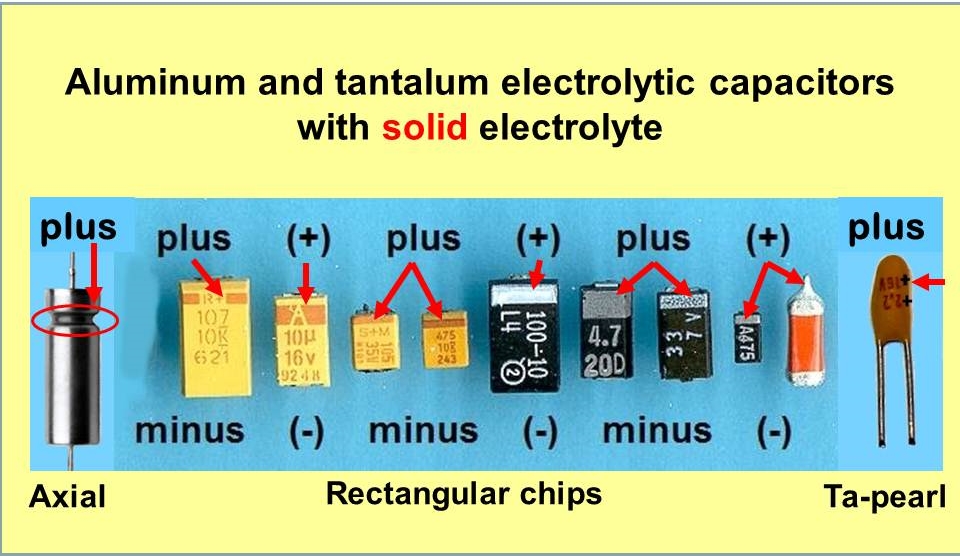

Diagram of polarity marking on aluminium and tantalum electrolytic capacitors with solid electrolyte: on the rectangular chips and the tantalum pearl shown, the mark identifies the positive (plus) terminal. Copied from Wikimedia Commons.
