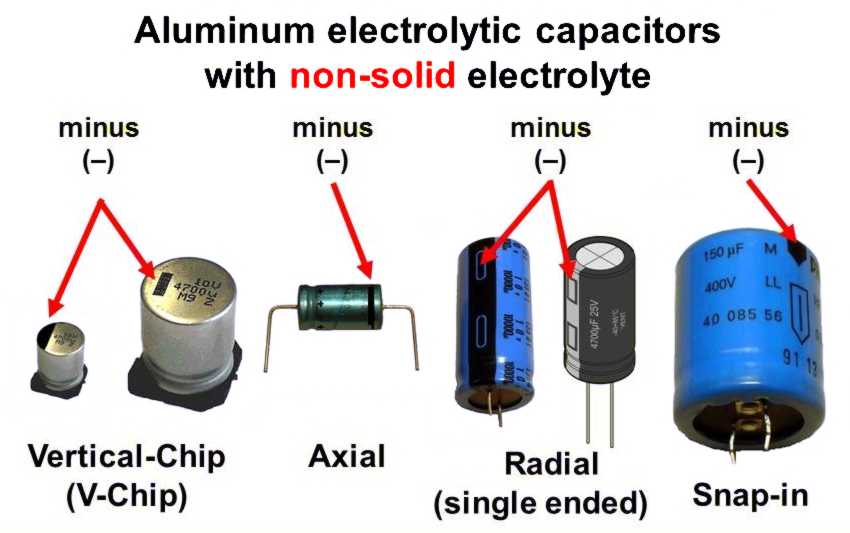

Diagram of polarity marking on aluminium electrolytic capacitors with non-solid electrolyte: the negative (minus) terminal is marked on vertical-chip (surface-mount), axial, radial and snap-in types. Copied from Wikimedia Commons.
