File:SGI Origin 3000 power bay front panel.png
Size of this preview: 800 × 478 pixels. Other resolution: 1,094 × 654 pixels.
Original file (1,094 × 654 pixels, file size: 95 KB, MIME type: image/png)
Summary
[edit | edit source]

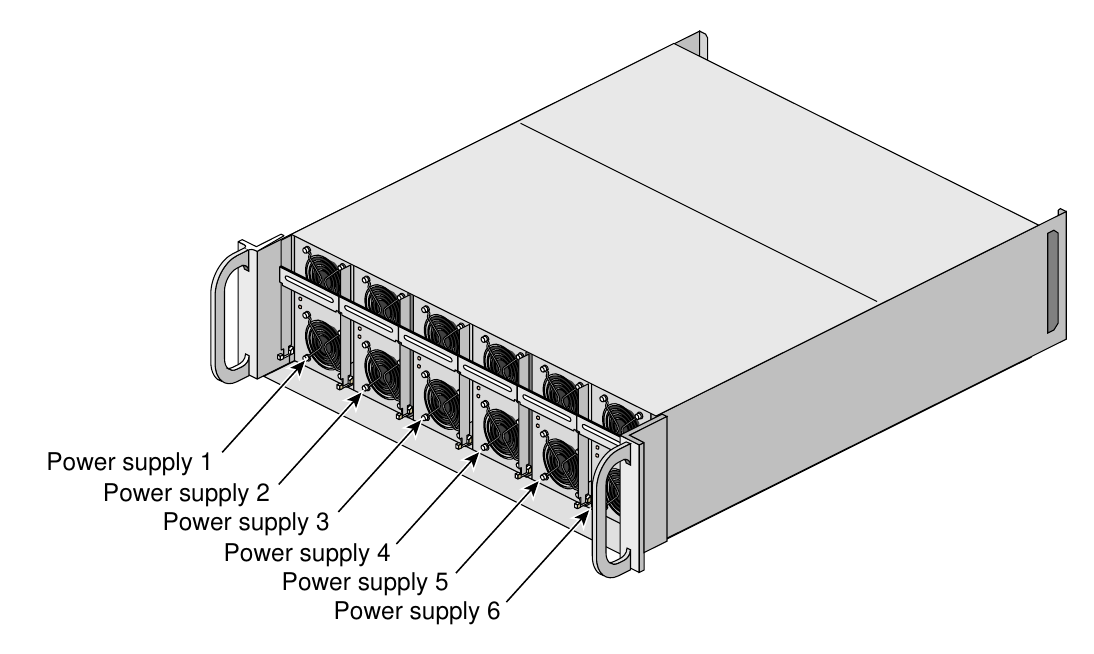

Drawing of the Origin 3000 power bay with six power supplies installed, numbered 1 to 6.
Source
[edit | edit source]
Rendered from SGI, SGI Origin 3000 Series Owner's Guide, 007-4240-002, p. 204, Figure 10-3 (File:SGI Origin 3000 Series Owner's Guide (007-4240-002).pdf), 2026-10-22.
