File:SGI Origin 350 front panel controls.png
Size of this preview: 800 × 331 pixels. Other resolution: 1,309 × 542 pixels.
Original file (1,309 × 542 pixels, file size: 161 KB, MIME type: image/png)
Summary
[edit | edit source]

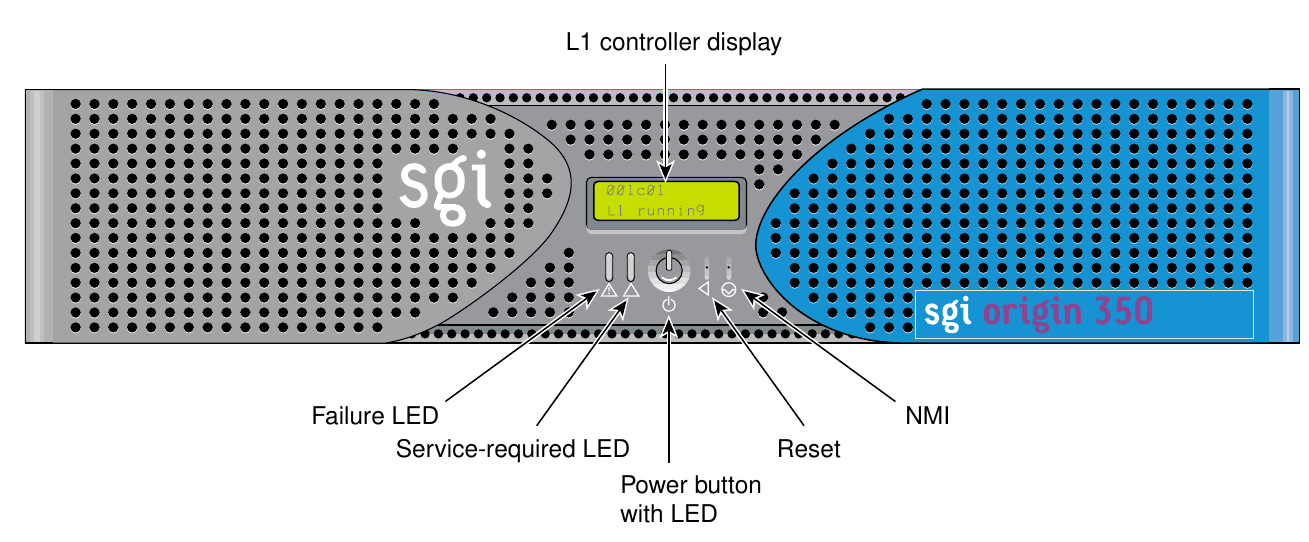

Drawing of the Origin 350 compute module front panel: L1 controller display, failure and service-required LEDs, power button with LED, reset and NMI buttons.
Source
[edit | edit source]
Rendered from SGI, SGI Origin 350 Server System User's Guide, 007-4566-001, p. 122, Figure 3-5 (File:SGI Origin 350 Server System User's Guide (007-4566-001).pdf), 2026-10-22.
Author
[edit | edit source]
Silicon Graphics, Inc.
Licence
[edit | edit source]
Copyright Silicon Graphics, Inc. Hosted for preservation and repair reference, with the source cited.
