File:SGI R8000 CPU module removal (108-0139-001 Figure 1-8).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

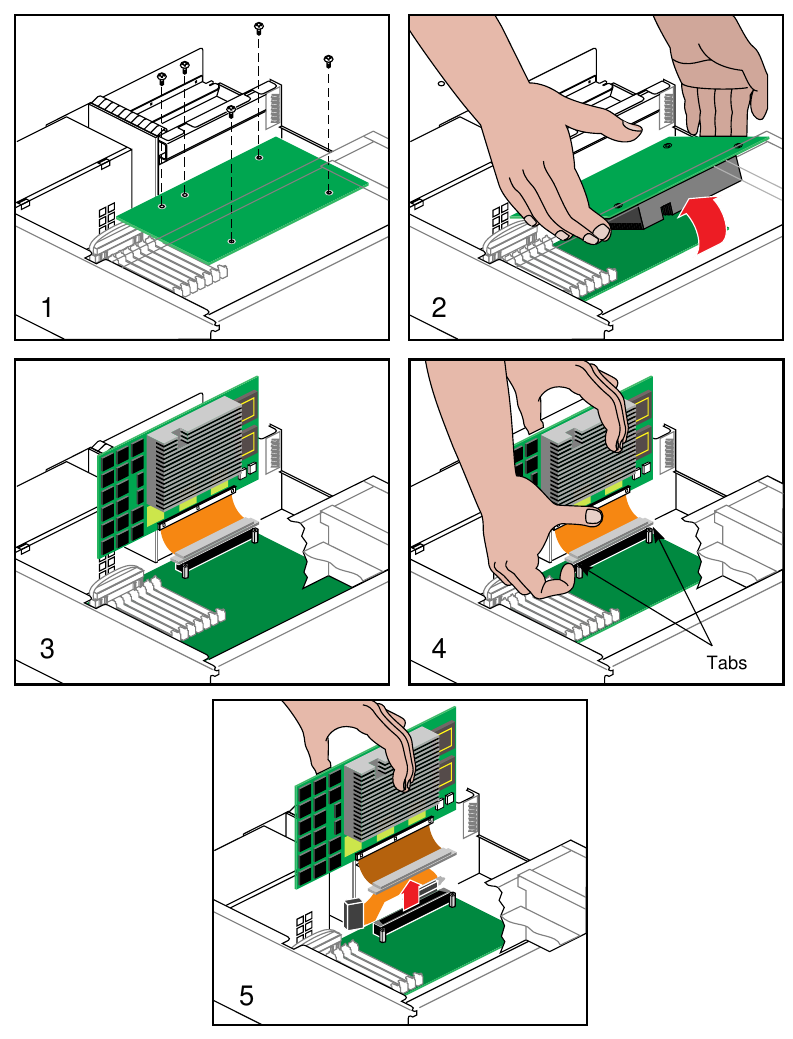

Figure 1-8, "Removing the R8000 CPU Module", from Silicon Graphics' hardware upgrade note 64 MB SIMM Upgrade for R8000 Indigo2 and POWER CHALLENGE M Systems (108-0139-001, 1995), page 11. Five panels: removing the five screws, raising the module off its standoffs, the module standing upright on its flex cable, lifting the tabs of the flex-cable connector, and lifting the module away. Rendered from the PDF at 150 dpi and cropped to the figure. See SGI Power Indigo² General Maintenance.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:SGI 64 MB SIMM Upgrade for R8000 Indigo2 and POWER CHALLENGE M Systems (108-0139-001).pdf, page 11. That PDF came from the Jurassic.nl TechPubs archive.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Silicon Graphics, Inc. (illustrated by Dan Young, as credited in the document)
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1995 Silicon Graphics, Inc. Hosted for preservation and repair reference, with the source cited.
