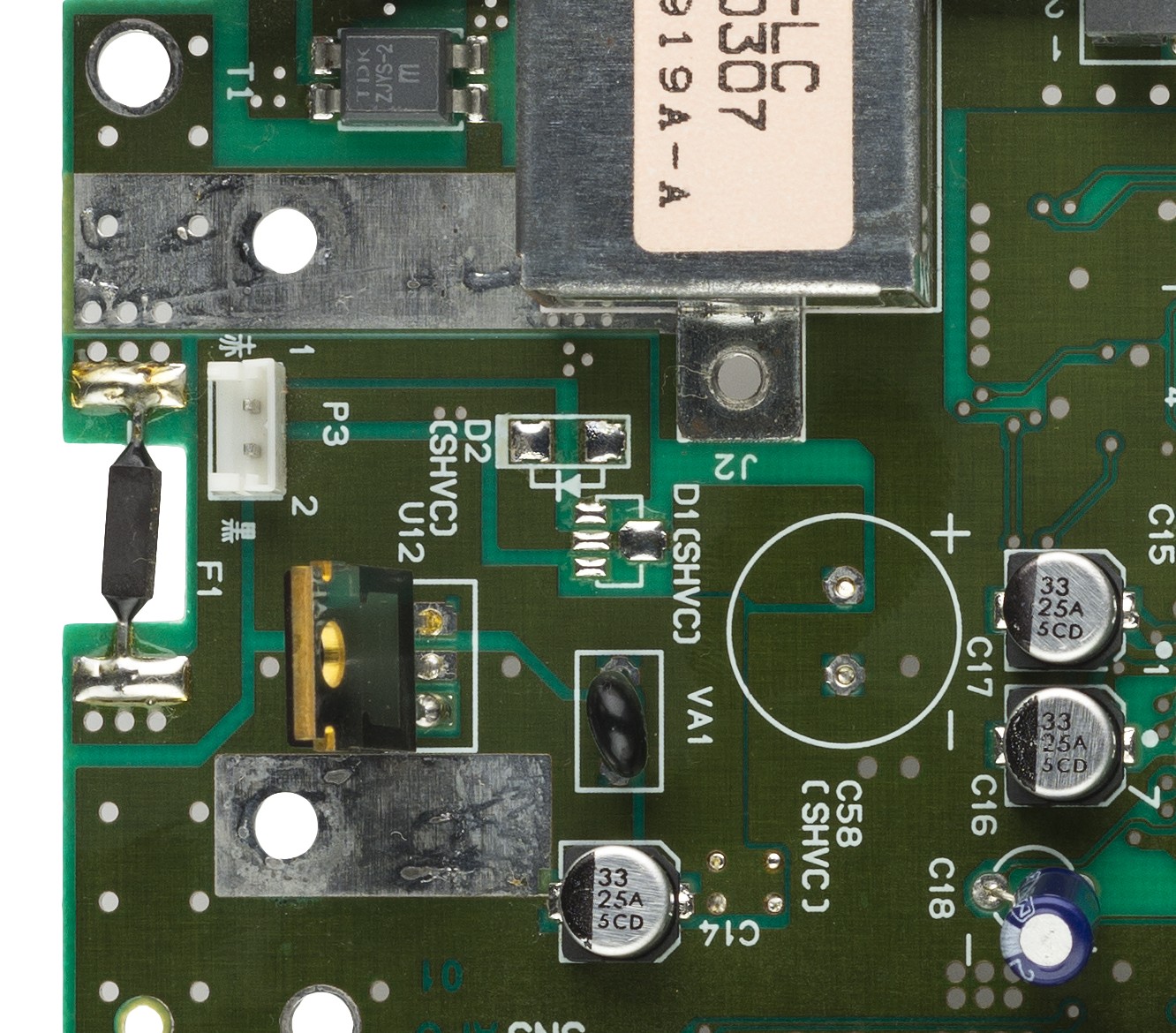

Crop of the top of a North American SNS-CPU-APU-01 Super NES main board around the power input: line filter T1 (TDK ZJYS-2), the axial fuse F1, power-switch connector P3 (pin 1 marked 赤, red; pin 2 marked 黒, black), the 7805 regulator U12 lying flat with its heatsink removed, surge absorber VA1, the 33 uF 25 V capacitor C14, and the positions D1, D2 and C58, each marked (SHVC) and left empty on this board.
