Super Nintendo Entertainment System Power Circuit Repair

From RetroTechCollection

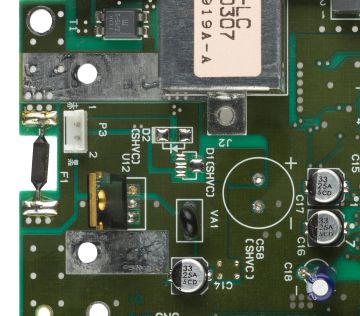

SNS-CPU-APU-01 power input section (Evan-Amos)
The power input of a North American SNS-CPU-APU-01: line filter T1, fuse F1, power-switch connector P3, the 7805 (U12, heatsink removed), surge absorber VA1 and C14. D1, D2 and C58 are marked (SHVC) and left empty on this board.

A Super Nintendo Entertainment System that shows no power light and no picture has lost its supply somewhere between the adapter and the 5 V regulator. The console takes an unregulated low-voltage supply from its adapter and passes it through a line filter, a fuse, a reverse-protection diode and the power switch to a 7805 regulator, which makes the 5 V logic supply, Vcc. A transistor stage beside the regulator makes the unregulated Vs rail for the audio amplifier.[1][2] Nintendo's diagnostic table lists the causes of a dead console, most likely first, as F1 (the 1.5 A fuse), D1, T1 (the line filter), U12 (the 7805), VA1 (the surge absorber), Q18 and P3 (the power switch).[3]

Follow that path with a meter, one stage at a time. The figures below are for the NTSC boards; PAL consoles take AC and rectify it on the board (see Board differences). Replacing the regulator itself is covered in Super Nintendo Entertainment System Voltage Regulator Replacement.

Symptoms

[edit | edit source]

Safety

[edit | edit source]

The console itself carries no more than the adapter's low voltage. The adapter is a mains transformer: test it only at its output plug. Before opening the console, switch it on with the adapter disconnected to discharge the input reservoir C67, as Nintendo's manual directs.[6] Nintendo's handling notes warn against testing ICs with a meter on its resistance ranges, because the test voltage can damage them; the checks below are voltage measurements on supply points.[7]

Tools and parts

[edit | edit source]
Tools and parts
Item Detail
Multimeter DC volts and continuity
Soldering iron and hand desoldering pump Nintendo graded the power switch, the 7805, the fuse and the RF modulator as rank B repairs, needing a screwdriver, a soldering iron and a hand-operated desoldering pump[8]
Fuse F1 1.5 A axial. Nintendo lists it as "1.5A SSTR";[8][9] the fuse on the SNS-CPU-APU-01 in Evan-Amos's photograph is marked SOC 1.5A[10]
Regulator 7805; see Super Nintendo Entertainment System Voltage Regulator Replacement
Disassembly The six case screws and the board screws; see the cartridge connector guide for the opening steps

The circuit

[edit | edit source]
SNES power input and regulator circuit (Donaldson redraw)
The power section of the NTSC GPM and RGB boards in Jonathon W. Donaldson's redraw. The supply enters at the DC jack J1 on the right and runs left through T1, F1, D1 and the power switch P3 to the 7805 (U12). Q18 at the far left feeds the Vs rail. C67, in brackets, is not fitted on every board.
Super Famicom power circuit (Nintendo service manual)
Nintendo's own power diagram for the Super Famicom: 13-14 V from the input to the regulator, 5 V after it, the LED on the 5 V side and a transistor (TR) feeding VS

Reading the redraw from the jack inwards:[2]

Supply path on the NTSC GPM and RGB boards
Stage Part Notes
1 DC jack J1 "+10V (Nominal) for NTSC"
2 T1, C30, C31 Line filter; the redraw marks T1 ZJVS5102-2P, Nintendo's parts list "ZJYS5012.2PT",[9] and the part on Evan-Amos's boards reads TDK ZJYS-2[11]
3 F1 1.5 A fuse
4 D1 Reverse-protection diode; PB1100 on the redraw, "SK.RB110C" in Nintendo's parts list[9]
5 C67 1000 µF 25 V reservoir, drawn in brackets
6 P3 Power switch, on a two-pin lead
7 VA1, C33, C63 Surge absorber (ERZC050K220 on the redraw, "ERZ.CF2MK220" in Nintendo's list) and filter capacitors[9]
8 U12 7805: pin 1 in, pin 2 ground, pin 3 out, with C34 on the input and C81 (1 µF) on the output
9 Q18, R76, C64 Transistor stage taking the unregulated rail to Vs

Procedure

[edit | edit source]

Check the adapter

[edit | edit source]
  1. Read the adapter's rating plate. The North American SNS-002 gives "Output DC10V 850mA" and is centre negative, and the console's own label says to use it with adapter SNS-002 only.[12][13] A PAL console needs an AC transformer such as the NES-002.[14]
  2. Measure the adapter at its plug with no load. It is unregulated, so it reads above its rating: Nintendo gives 13.5 ± 1.5 V off load as normal for its 10 V Famicom adapter, which is the same kind of unregulated supply.[1][15]
  3. If the adapter reads nothing, or the console works with a known-good adapter, the fault is in the adapter or its lead, not the console.

Follow the supply through the board

[edit | edit source]

Open the console as far as the main board (see the cartridge connector guide, steps 1 to 8), refit the adapter and switch on. Measure each point to ground, using the regulator's middle pin, which is ground.[2]

Test points, in order from the jack
Step Measure Expected If it is missing
1 Both ends of F1 Adapter voltage at both ends Voltage at one end only: the fuse is open. Find the cause before fitting a new one (see below)
2 Both sides of D1 A diode drop lower on the switch side Check D1. On boards where the D1 position is empty, skip this step
3 Both pins of P3, switch on The same voltage on both pins The switch or its lead is open
4 7805 input (pin 1, I) 13-14 V in Nintendo's Super Famicom diagram[4] Check VA1, C63 and the track between P3 and U12
5 7805 output (pin 3, O) 5 V[4][1] Input present but no output: replace the regulator
6 Vs, at the emitter of Q18 About 7 V per Nintendo; the redraw's sheet note gives 9 V[1][2] Console works but is silent: check Q18, R76 and C64

Sources: the redraw for the order of parts;[2] Nintendo for the voltages.

The regulator's joints are marked I, G and O beside the part on the SNS-CPU-1CHIP-02, and on the underside of the SNS-CPU-APU-01.[11][10]

SNS-CPU-APU-01 underside regulator joints and R28 (Evan-Amos)
Underside of an SNS-CPU-APU-01: the regulator's joints marked I, G and O, C61 beside them, the chip link R28 marked [SNS/SNSM], and the fuse body marked SOC 1.5A past the board edge

Fuse F1

[edit | edit source]

Adam Wilson describes the fuse as a 1.5 A single-use picofuse that is often found open circuit.[16] A fuse opens because something drew too much current. Nintendo's diagnostic table tells the technician to inspect the whole board for damaged or missing parts before any repair, and its list for a dead console continues after F1 with D1, T1, U12, VA1, Q18 and P3.[3]

  1. With the adapter disconnected, inspect D1, T1, the regulator, VA1 and Q18 for burns, cracks or bulging.[3]
  2. Desolder the old fuse.
  3. Fit a 1.5 A axial fuse in its place.[8][9]
  4. Repeat the test-point checks above. If the new fuse opens as soon as the console is switched on, work down the rest of Nintendo's list before fitting another.[3]

Wilson fitted a 1.6 A 60 V self-resetting polyfuse instead; that is a modification, not Nintendo's part.[16]

Power switch P3

[edit | edit source]
  1. Remove the two screws holding the switch and unplug its lead from the two-pin connector on the board.[6]
  2. With the switch on, check for continuity between the two contacts of the lead's connector. Open circuit means a worn switch or a broken wire; Nintendo lists P3 among the causes of a dead console.[3]
  3. On a Super Famicom, the switch is polarised to extend the life of its contacts. If the harness is resoldered or a new switch fitted, solder the red wire to the terminal marked + and the black wire to the terminal marked −.[17] On the SNS-CPU-APU-01, the board connector P3 is marked 赤 (red) at pin 1 and 黒 (black) at pin 2.[11]
Super Famicom power switch harness polarity (Nintendo service manual)
Nintendo's instruction for the Super Famicom power switch: red wire (赤線) to +, black wire (黒線) to −

Regulator, surge absorber and Vs

[edit | edit source]
  • No 5 V with 13-14 V at the input: replace the 7805. See Super Nintendo Entertainment System Voltage Regulator Replacement.[4]
  • VA1, the surge absorber across the switched supply, follows the regulator in Nintendo's list for a dead console.[3][2]
  • Picture but no sound, with 5 V present: Nintendo's sound list ends with Q18, and fullsnes notes that the console runs without the amplifier supply but makes no sound.[3][5] Measure Vs as in step 6.

Testing

[edit | edit source]
  1. Switch on with a known-good cartridge. The power light comes on.[4]
  2. Measure 5 V at the regulator output and Vs at Q18.[4][1]
  3. Run Nintendo's console test: Super Mario World, both controllers, colour, picture and sound, and the RF and A/V outputs.[18]

Board differences

[edit | edit source]
Power input by board
Board Difference
SHVC-CPU-01 C67 fitted; Nintendo's first disassembly step discharges it[6]
GPM (Playtronic's description) C67 removed[19]
SNS-CPU-APU-01, SNS-CPU-1CHIP-02 (North American) D1 and C58 positions marked (SHVC) and empty on Evan-Amos's boards; D2 also empty on the APU-01; a chip link R28 marked [SNS/SNSM] fitted on the APU-01 underside.[11][10] With no diode at D1, a centre-positive adapter is not blocked
Cost-down boards 7805 at U9[5]
SNSP-CPU (PAL) 9 V AC input, rectified by bridge DB1, fitted only to the AC version[5]
