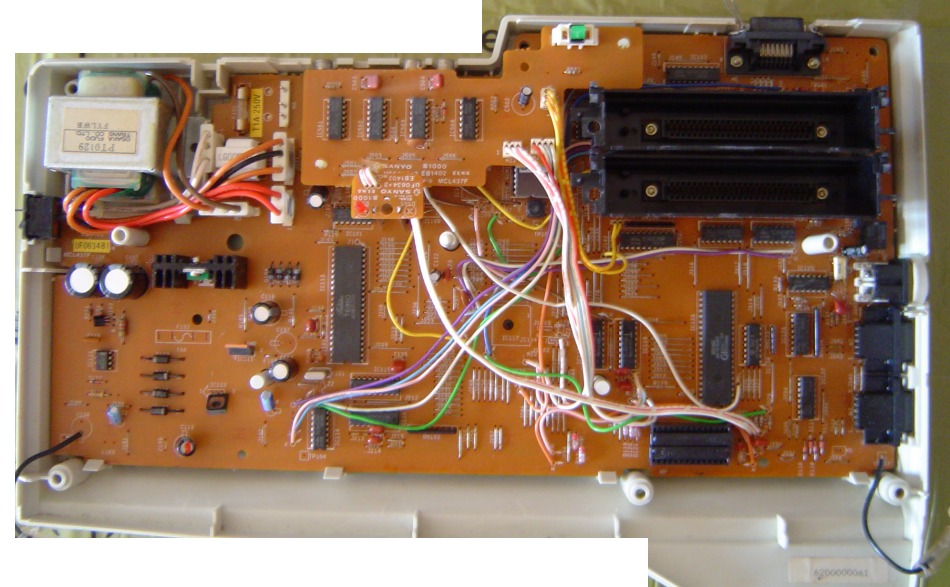

Inside of a Sanyo MPC-200 with the top cover removed. At the top left: a mains transformer labelled PT0129 beside a fuse holder marked F101 and "T1A 250V"; below it two large electrolytic capacitors side by side, next to a part on a black heatsink. The main board carries a yellow label UF063481 and the marking MCL437F; a smaller board at the top, marked SANYO EB1402, sits behind the two cartridge connectors.
