File:Sega Dreamcast VA1 disassembly step 7 (Sega).jpg
Size of this preview: 800 × 393 pixels. Other resolution: 1,427 × 701 pixels.
Original file (1,427 × 701 pixels, file size: 218 KB, MIME type: image/jpeg)
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

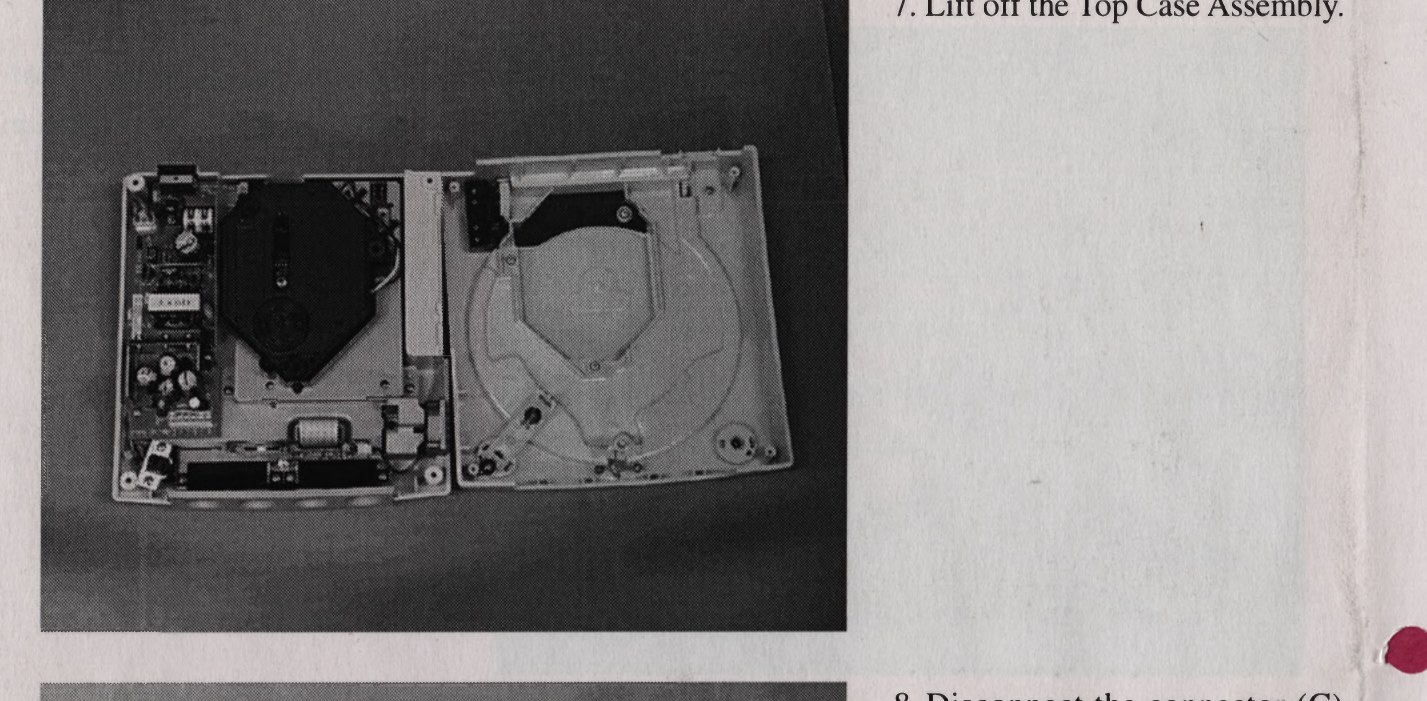

Photograph and caption from Sega's VA1 disassembly procedure for the Dreamcast, steps 7: lifting off the top case assembly.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Sega Enterprises, Ltd., Service Manual: Dreamcast EU, No. 022-EU, October 1999, p. 5-2, "Disassembly Procedure VA1", hosted on this wiki as File:Sega Dreamcast EU Service Manual 022-EU.pdf (PDF page 5)
