Sega Dreamcast Clock Battery Replacement

From RetroTechCollection
Sega Dreamcast controller port board KATANA SUB BD 2 KAI
North American controller-port board (KATANA SUB BD 2 KAI). The clock cell BT1 is the blue cell at the left, with R1 beside it and a + mark at its left end (photo: Evan-Amos, public domain)

The Sega Dreamcast keeps its date and time in the real-time clock inside the AICA sound chip, held up by a rechargeable lithium coin cell, BT1, soldered to the controller-port board (Sega's sub board 2). The console charges the cell whenever it is switched on; Sega's US manual says the first charge takes about two hours and a charged cell keeps the date and time for about 20 days.[1][2] After twenty-odd years the cells no longer hold a charge, and the replacement is to desolder the old cell and fit a rechargeable ML-series cell, usually in a holder so the next change needs no soldering.[3]

Symptoms

[edit | edit source]
  • The date and time screen appears every time the console is switched on.[1]
  • Sega's own check: leave the console switched on for at least two hours. If the date and time screen still appears at the next power-on after that, the cell is no longer holding a charge.[1] See Sega Dreamcast Troubleshooting Guide.

A beep at power-on is a different fault: it comes from a VMU with flat cells in a controller, not from the clock cell.[4]

Safety

[edit | edit source]

Warning: the power supply at the left of the console runs from mains, and its primary reservoir capacitor can hold a charge after the console is unplugged.[5] Unplug the console before opening it.

Sega's caution for the clock cell is to replace it only with the same or an equivalent type recommended by the manufacturer.[6] The circuit charges the cell through R1, so a non-rechargeable CR2032 should not go in its place; Cameron Kaiser and dreamcast.wiki both use a rechargeable ML cell.[2][7][3] See Battery Refurbishment and Battery Explosion, Capacitor or Corrosion Damage.

Tools and parts

[edit | edit source]
  • Phillips screwdriver and a nylon spudger.[7]
  • Soldering iron, solder, and desoldering braid or a pump.
  • Multimeter.
  • A rechargeable cell and, if wanted, a holder (see the table).
Cells for BT1
Cell Capacity Size (diameter × height) Sega part for BT1 Notes
ML2020 45 mAh 20 × 2 mm 401-0067 (Panasonic ML2020/G1B) The usual stock cell
ML2032 65 mAh 20 × 3.2 mm 401-0066 (Hitachi ML2032T26) dreamcast.wiki's recommended replacement, in a vertical 2032 holder
ML2430 100 mAh 24.5 × 3.0 mm 401-0068 (Sanyo ML2430-VS1) Fitted to some consoles; may be too large for a vertical holder
LIR2032 3.6 to 3.7 V lithium-ion Not recommended: the console does not charge it fully

Capacities, sizes and the LIR2032 note from dreamcast.wiki; Sega part numbers from the EU service manual.[3][8]

dreamcast.wiki notes that a standard vertical 2032 holder has the same footprint as the stock soldered-in cell, and Kaiser found holder kits on sale that match the holes on the controller board "almost exactly".[3][7]

Procedure

[edit | edit source]

Remove the controller-port board

[edit | edit source]

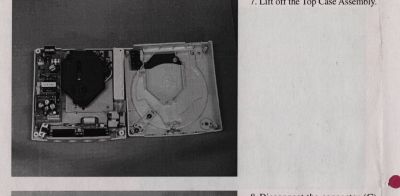

Sega Dreamcast VA1 disassembly step 7 (Sega)
Sega's step 7: the top case lifted off. The controller-port board runs along the front edge of the base

The steps are the same as in Sega Dreamcast Controller Port Fuse Replacement, which shows Sega's photographs beside them.

  1. Unplug every lead, remove any disc and close the lid.[9]
  2. Turn the console over, remove the modem and the four screws (one in the modem bay, three in the corners).[10][7]
  3. Holding the top cover on, turn the console upright and lift the cover off.[9][10]
  4. Disconnect the flat cable from the main board, remove the four screws holding the controller-port board, and unplug the fan lead from CN4.[10]
  5. Ease the board out of the front shell and its clasps with a nylon spudger.[7]

Replace the cell

[edit | edit source]
  1. Note which way round the old cell sits, and the + mark printed beside BT1 on the board (visible in the lead photograph).
  2. On Kaiser's board the cell and its holder were soldered through the board at three points, with the apex of the triangle under a blob of lacquer. Heat each joint in turn and pull the old cell and holder out.[7]
  3. Clear the holes, or leave the solder in them to reuse for the new holder, as Kaiser did.[7]
  4. Fit the new holder in the same orientation as the old cell and solder it.[7]
  5. Fit the ML cell in the holder, observing the holder's polarity marking.
  6. Check the voltage across the holder's pins. Kaiser read about 3 V between the apex pin (negative) and the right-hand of the other two (positive).[7]

dreamcast.nu fitted a non-rechargeable CR2032 instead, and added a 1N4007 diode at R1 so that the console could not charge it.[11] The page shows the diode only in a photograph and does not give its orientation, and the change departs from Sega's same-type caution; the rechargeable ML route above needs no change to the circuit.[6]

Reassemble

[edit | edit source]
  1. Seat the board in the front shell and refit its four screws.[7][10]
  2. Plug the fan lead into CN4.[10]
  3. Push the flat cable squarely home. Kaiser bent a contact on this cable so that pins 1 and 2 touched, and the console misbehaved until he straightened it.[7]
  4. Refit the top case, the four base screws and the modem.[10]

Testing

[edit | edit source]
  1. Switch on, set the date and time, and leave the console on for about two hours to charge the cell.[1]
  2. Switch off and unplug for a while, then switch on again. The date and time should be kept, and the setting screen should not appear.[1][7]
  3. If the console now shuts down a few seconds after power-on, the fan lead or the flat cable is not seated properly.[7]

Revision notes

[edit | edit source]

Sega's parts list gives three alternative cells for BT1, all rechargeable ML types of different sizes, so the stock cell varies between consoles.[8] Kaiser's North American console had an ML2020; the North American KATANA SUB BD 2 KAI board in the lead photograph has a larger cell lying flat, and dreamcast.wiki records soldered-in ML2430 cells on some consoles.[7][3] Check which cell and footprint your board has before buying a holder. Sega's schematic and parts list are for the European sub board 2, 839-1124.[2]
