Sega Dreamcast Controller Port Fuse Replacement

From RetroTechCollection
Sega Dreamcast controller port board KATANA SUB BD 2 KAI

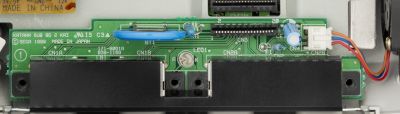

The controller-port board of a North American Dreamcast (KATANA SUB BD 2 KAI). F1 is the small blue part just below CE1, towards the fan connector CN4 at the right-hand end (photo: Evan-Amos, public domain)

All four controller ports of the Sega Dreamcast take their 5 V supply through one part, F1, on the controller-port board that Sega calls sub board 2. When F1 opens, every port loses power at once: controllers, Visual Memory Units and other Maple bus peripherals stop working, while the console itself still starts and shows a picture.[1][2] Sega's parts list calls F1 a fuse and gives it as a KOA RF25SCVTP, 0.39 Ω. KOA's RF series are coat-insulated fusing resistors: they behave as a low-value resistor in normal use and burn open under an overload.[3][4]

The procedure below follows the 5 V supply from the main board to the ports, confirms that F1 is the break, and replaces it. The same board carries the clock cell; if the console also asks for the date and time at every start, replace the cell while the board is out (see Sega Dreamcast Clock Battery Replacement).

Symptoms

[edit | edit source]
  • No controller works in any port, while the console starts and the power LED lights.
  • On dreamcast.nu's console the symptom was controller port 1 not working properly; replacing F1 cured it.[5]

Faults that look similar:

  • One port dead and the others working: F1 feeds all four ports in parallel, so a port that fails while the others work points to that port's contacts or signal lines.[1] See Sega Dreamcast Troubleshooting Guide.
  • The console shuts down a few seconds after power-on, or will not start: Cameron Kaiser traced this to the controller-board flat cable or the fan connector, both on the same board. The Dreamcast switches itself off if the fan does not turn.[6]
  • Date and time lost at every start: the clock cell, not F1.[1]

Safety

[edit | edit source]

Warning: the power supply at the left of the console runs from mains and its primary reservoir capacitor (C3, 68 µF 400 V on the supply schematic hosted here) can hold a charge after the console is unplugged.[7] Unplug the console before opening it. Keep fingers and probes away from that board when testing with the top case off.

The GD-ROM drive is a laser product. Do not look into the lens while the console is running with the top case removed.[8]

Tools and parts

[edit | edit source]
  • Phillips screwdriver (GDEMU's maker specifies PH2 for the case screws) and a nylon spudger.[9][6]
  • Multimeter with a low-ohms range.
  • Soldering iron, solder and desoldering braid or a pump.
  • A replacement for F1 (see the table).
  • Optional: a 47 µF 10 V electrolytic for CE1, which dreamcast.nu replaced at the same time.[5][3]
Replacements for F1
Part Source Behaviour
Sega 514-5109, KOA RF25SCVTP 0.39 Ω Sega's parts list[3] Original part, a fusing resistor
KOA RF25C fusing resistor, 0.39 Ω KOA datasheet (RF25C covers 0.1 Ω to 10 kΩ)[4] Same family and power rating as the original
Resettable (PTC) fuse; dreamcast.nu used a 72 V 0.4 A part dreamcast.wiki, dreamcast.nu[2][5] Opens on overload and recovers after it is removed
Yageo MFR-25FTF52-0R39, 0.39 Ω 0.25 W metal film resistor dreamcast.wiki[2] Matches the resistance, but is an ordinary resistor with no rated fusing behaviour

The two community sources disagree about the last option: dreamcast.wiki offers a plain 0.39 Ω resistor, while dreamcast.nu says F1 is a fuse and must not be replaced with a resistor. Sega's parts list agrees with dreamcast.nu that the original is a fuse.[2][5][3] Do not bridge F1 with wire or by twisting its leads together; dreamcast.nu warns that this removes the protection.[5] Sega's general caution on fuses is to replace one only with the same type, amperage and voltage, which the first two rows of the table meet.[8]

Procedure

[edit | edit source]

The supply path

[edit | edit source]
Sega Dreamcast sub board 2 schematic 839-1124

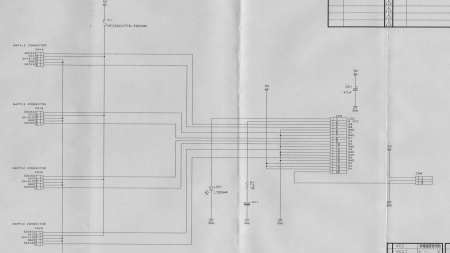

Sega's schematic of sub board 2 (839-1124, EU service manual p. 8-25). 5 V enters on CN3 pins 17 to 19 (right of centre), passes through F1 (top left) and reaches pin 2 (VCC) of the four Maple connectors on the left. R1 and BT1 below CN3 are the clock-cell circuit.

The 5 V supply comes from the power supply to the main board, and from the main board to the controller-port board through the 20-way flat cable, arriving on CN3 pins 17, 18 and 19. On the controller-port board it passes through F1 and then to pin 2 of each of the four Maple connectors CN1A, CN1B, CN2A and CN2B. Pin 4 of each connector is ground.[1] A missing 5 V at the ports is therefore one of three things: no 5 V arriving at CN3 (supply, main board or flat cable), F1 open, or a short on the port side pulling the supply down.

Open the console

[edit | edit source]
Sega Dreamcast VA1 disassembly steps 2-4 (Sega)
Sega's steps 2 to 4: modem (A) off and four screws (B) out of the base
  1. Disconnect every lead from the console. Remove any disc and close the lid.[9]
  2. Turn the console over and remove the modem (A).[10]
  3. Remove the four screws (B): one in the modem bay and three recessed in the corners.[10][6]
  4. Hold the top cover on and turn the console upright. The cover holds down part of the GD-ROM assembly.[9]
  5. Open the CD door and check the door switch for damage, then lift off the top case.[10]

Measure before removing the board

[edit | edit source]

These checks need the console powered with the top case off. Keep clear of the power supply board.

  1. Reconnect the power lead and video, and switch on.
  2. Measure from ground (the negative lead of CE1 on the controller-port board) to each end of F1 in turn. Both ends read 5 V on a working board.[1]
  3. If one end reads 5 V and the other reads nothing, F1 is open. Note which end read nothing: it is the port side. If neither end reads 5 V, the supply is not reaching the board; check the 5 V output of the power supply and the flat cable before going further.[1][7]
  4. Switch off and unplug.

Remove the controller-port board

[edit | edit source]
Sega Dreamcast VA1 disassembly steps 14-15 (Sega)
Sega's steps 14 and 15: the flat cable (G) disconnected from the main PCB and the four screws (H) removed
Sega Dreamcast VA1 disassembly steps 16-17 (Sega)
Sega's steps 16 and 17: the fan lead unplugged from CN4 (I) and the sub PCB (J) lifted out

Sega's procedure takes out the power supply, the plate beside the drive and the GD unit before the sub board (its steps 8 to 13).[10] Kaiser reached the controller board with only the top case off.[6] Remove the drive as well if the flat cable or the screws are hard to reach.

  1. Disconnect the flat cable from the main board (Sega's G).[10]
  2. Remove the four screws (Sega's H) holding the controller-port board: two at the side and two in the middle.[10][6]
  3. Unplug the fan lead from CN4.[10]
  4. Ease the board out of the front shell and the clasps under it with a nylon spudger, and lift it out.[6]

Test and replace F1

[edit | edit source]
  1. Find F1. On the North American KATANA SUB BD 2 KAI it is the small blue part just below the capacitor CE1, near the fan connector CN4 (lead photograph); dreamcast.wiki's view of the back of the board shows it behind the same capacitor.[2]
  2. Measure across F1 on the low-ohms range. Sega's value is 0.39 Ω, so a good part reads close to the meter's own zero; an open circuit is a blown F1.[3]
  3. Desolder F1 and clear the holes.
  4. With nothing plugged into the ports, measure between the port-side pad of F1 and ground. A reading close to zero ohms means there is still a short on the port side; find it before fitting a new part, or the new one will blow.[1]
  5. Fit the replacement in the same holes and solder it.
  6. If you are replacing CE1 as well, observe its polarity; Sega's part is 47 µF 10 V.[3][5]

Reassemble

[edit | edit source]
  1. Fit the board back into the front shell and its clasps, and refit the four screws.[6][10]
  2. Plug the fan lead back into CN4.[10]
  3. Push the flat cable squarely home at the main board. Kaiser bent one contact of this cable so that pins 1 and 2 touched, which by his account fed the clock cell's 3 V into a controller line and upset the console; he cured it by straightening the contact and reseating the cable.[6]
  4. Refit the top case and the four base screws, and the modem.[10]

Testing

[edit | edit source]
  • With the console on, 5 V at both ends of F1, measured to ground.[1]
  • A controller works in each of the four ports.
  • A VMU with good cells in a controller beeps at power-on; Kaiser takes a lit power LED and that beep as signs that the controller board is working.[6]
  • If the console now shuts down after a few seconds, recheck the fan lead in CN4 and the flat cable.[6]

Revision notes

[edit | edit source]

Sega's schematic and parts list are for the European sub board 2, part 839-1124. The North American board in Evan-Amos's photograph is marked KATANA SUB BD 2 KAI, 171-8061A and 839-1169, and carries the same designators (F1, R1, BT1, CE1, CN3, CN4, LED1) in a different layout, with a larger clock cell.[1] Kaiser's write-up calls the fuse R1; on Sega's drawing R1 is the 13 Ω resistor that feeds the clock cell, and the fuse is F1.[6][1]
