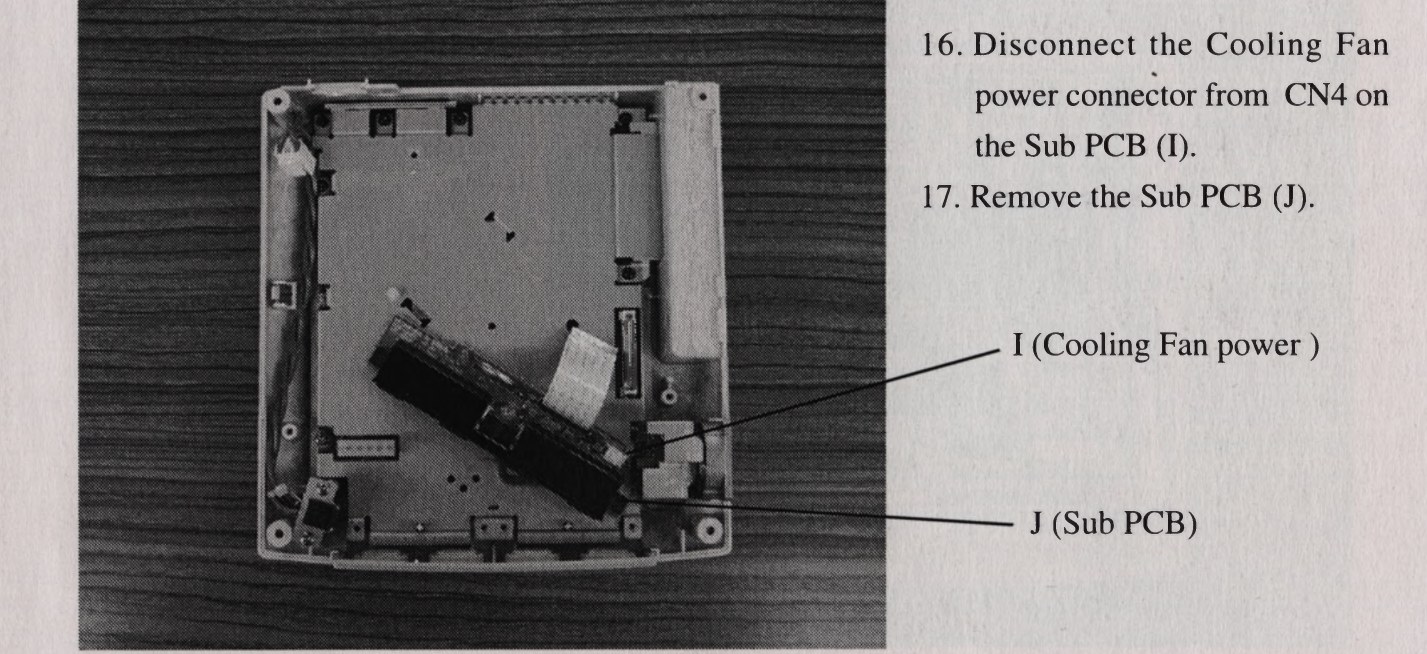

Photograph and caption from Sega's VA1 disassembly procedure for the Dreamcast, steps 16 and 17: disconnecting the cooling fan from CN4 on the sub PCB (I) and removing the sub PCB (J).
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Sega Enterprises, Ltd., Service Manual: Dreamcast EU, No. 022-EU, October 1999, p. 5-3, "Disassembly Procedure VA1", hosted on this wiki as File:Sega Dreamcast EU Service Manual 022-EU.pdf (PDF page 6)
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Sega Enterprises, Ltd.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
