File:Sega Dreamcast VA1 disassembly steps 2-4 (Sega).jpg
Size of this preview: 800 × 360 pixels. Other resolution: 1,427 × 642 pixels.
Original file (1,427 × 642 pixels, file size: 186 KB, MIME type: image/jpeg)
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

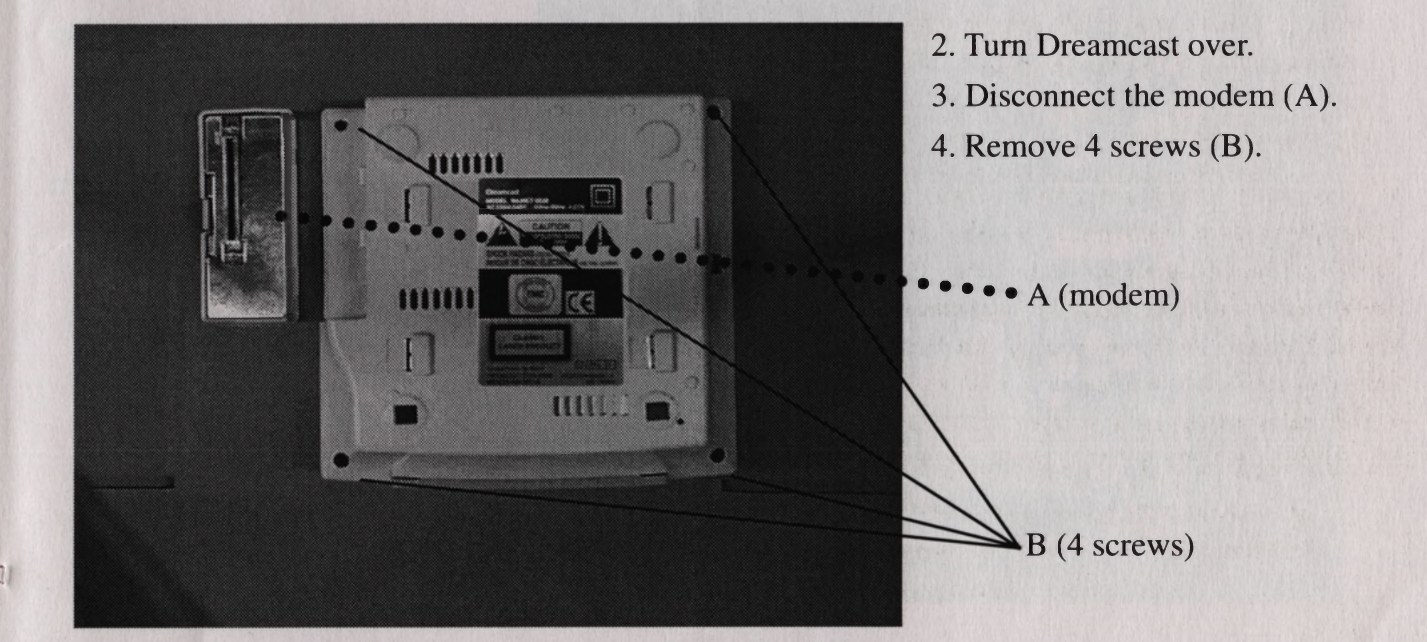

Photograph and caption from Sega's VA1 disassembly procedure for the Dreamcast, steps 2 to 4: turning the console over, disconnecting the modem (A) and removing the four case screws (B).
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Sega Enterprises, Ltd., Service Manual: Dreamcast EU, No. 022-EU, October 1999, p. 5-1, "Disassembly Procedure VA1", hosted on this wiki as File:Sega Dreamcast EU Service Manual 022-EU.pdf (PDF page 4)
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Sega Enterprises, Ltd.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
