File:Sega Saturn PAL CD drive adjustment points.png
Summary
[edit | edit source]

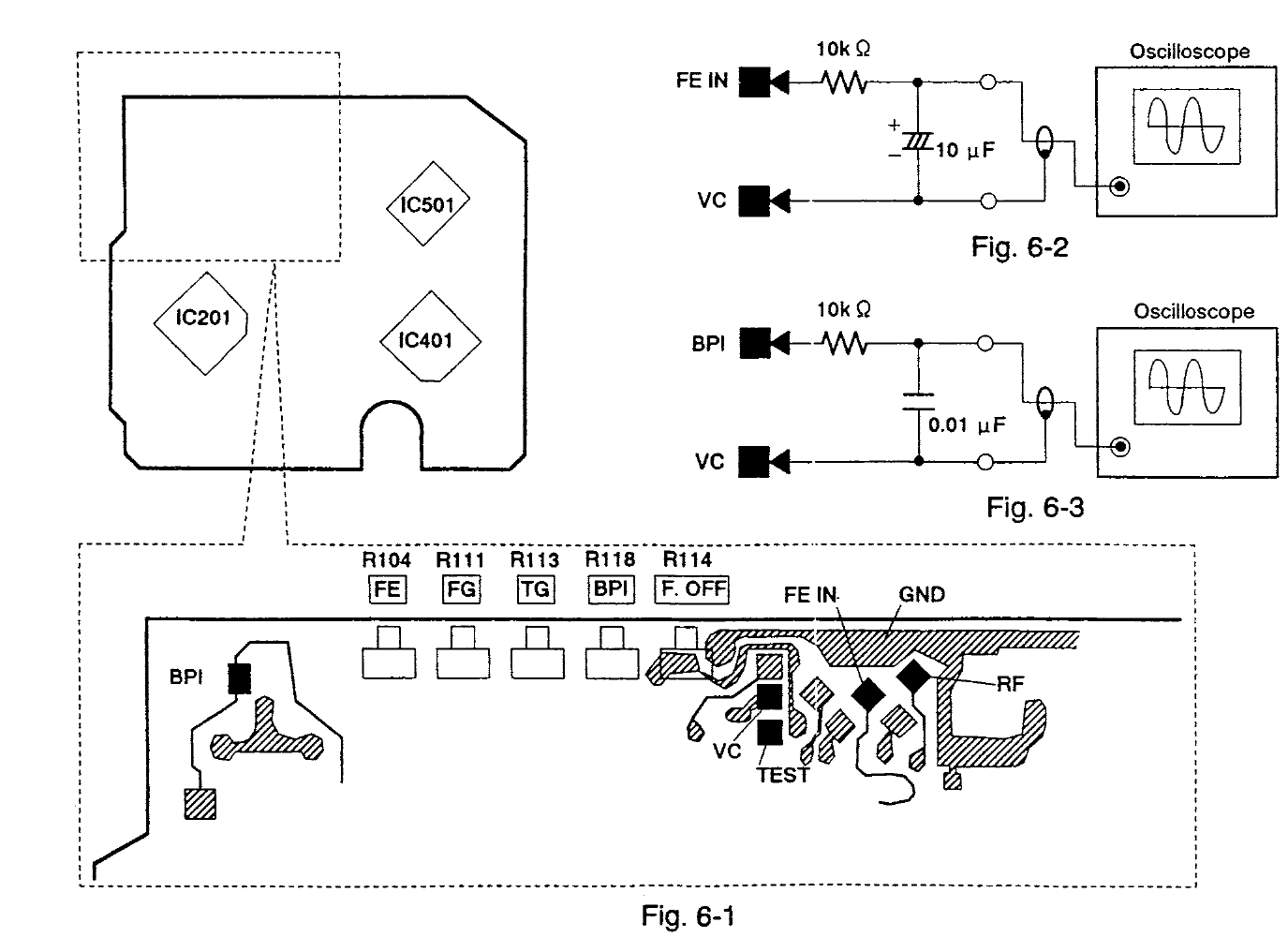

Sega's Figs. 6-1 to 6-3 for the CD drive unit of the PAL Saturn (MK-80200-50): the drive board outline with IC201, IC401 and IC501, the trimmers R104 (FE), R111 (FG), R113 (TG), R118 (BPI) and R114 (F. OFF), the test points FE IN, GND, VC, TEST, RF and BPI, and the 10 kΩ resistor and capacitor filters used to connect the oscilloscope to FE IN and BPI.
Source
[edit | edit source]
Sega Enterprises, Service Manual: Sega Saturn (PAL), No. 013-1, June 1995, section 6-4, printed page 9 (PDF page 11). Hosted on this wiki as File:Sega service manual - sega saturn pal - no. 013-1 june 1995.pdf; see Sega Service Manual - Sega Saturn Pal - 1 June 1995.
Author
[edit | edit source]
Sega Enterprises, Ltd.
Licence
[edit | edit source]
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
