File:Sega Saturn PAL top case and CD drive removal.png
Size of this preview: 800 × 485 pixels. Other resolution: 1,428 × 865 pixels.
Original file (1,428 × 865 pixels, file size: 76 KB, MIME type: image/png)
Summary
[edit | edit source]

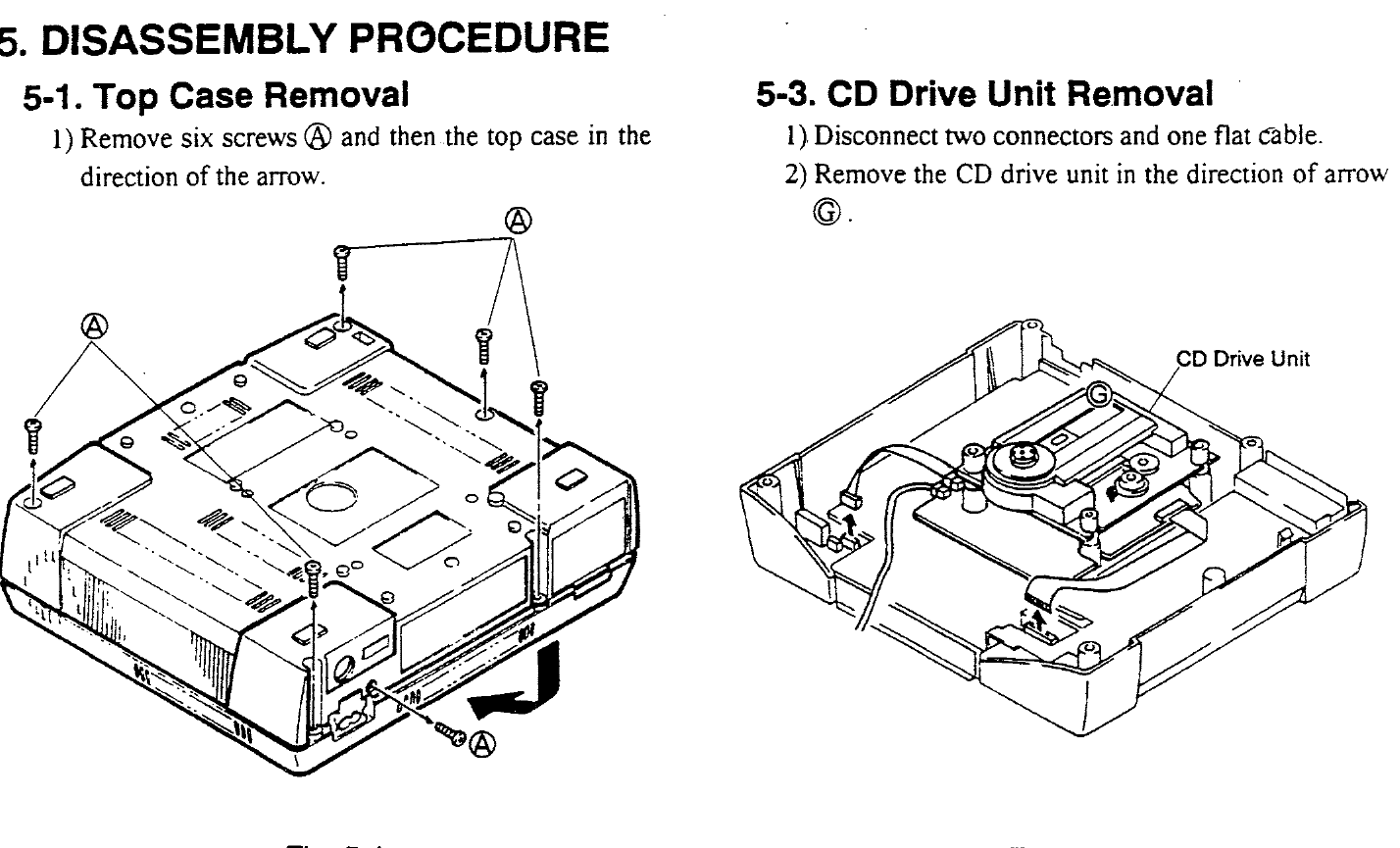

Sega's Figs. 5-1 and 5-3 for the PAL Saturn (MK-80200-50): removal of the top case with its six screws (A), and removal of the CD drive unit after disconnecting two connectors and one flat cable.
Source
[edit | edit source]
Sega Enterprises, Service Manual: Sega Saturn (PAL), No. 013-1, June 1995, section 5, printed page 6 (PDF page 8). Hosted on this wiki as File:Sega service manual - sega saturn pal - no. 013-1 june 1995.pdf; see Sega Service Manual - Sega Saturn Pal - 1 June 1995.
Author
[edit | edit source]
Sega Enterprises, Ltd.
Licence
[edit | edit source]
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
