File:Sharp MZ-3500 exploded view of the main unit (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

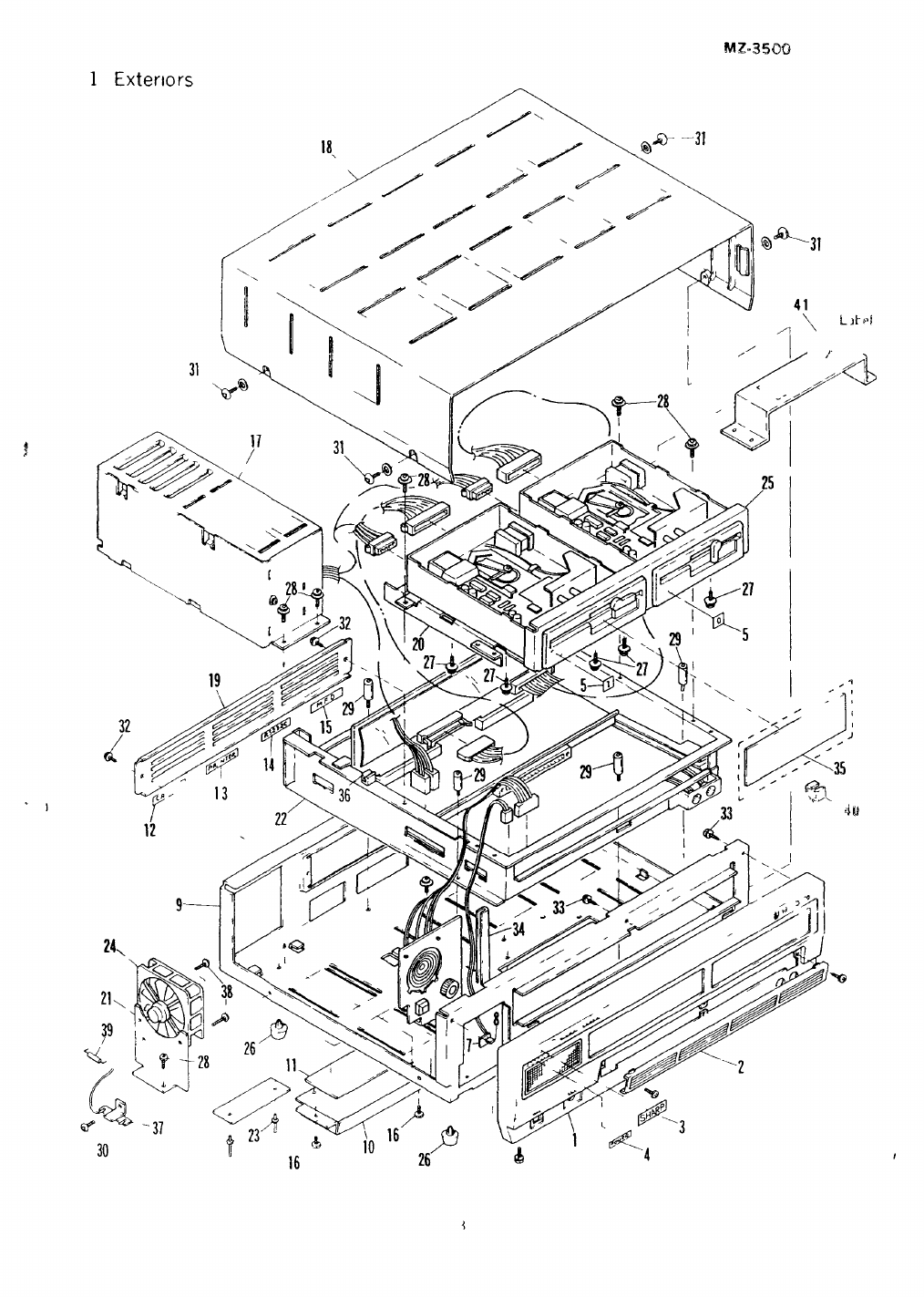

Exploded view of the MZ-3500 main unit from the parts guide in Sharp's service manual, section 1 "Exteriors" (parts guide page 3, PDF page 111 of File:Sharp MZ-3500 Service Manual.pdf). It shows the top cabinet (18) and its screws (31), the power supply unit (17), the mini floppy disk unit (25) on its fixing angle (20), the chassis (22), the bottom cabinet (9), the fan motor (24) on its fixing angle (21) at the rear, the front cabinet assembly (1) and the lid for the graphic slot (2). The item numbers match the exteriors parts list on parts guide page 2.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from page 111 of File:Sharp MZ-3500 Service Manual.pdf (Sharp code 00ZMZ3500SM/E), from https://www.sharpmz.net/mz-3500/download/mz3500sm.pdf, retrieved 2026-10-21. Cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Sharp Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Sharp Corporation. Hosted for preservation and repair reference, with the source cited.
