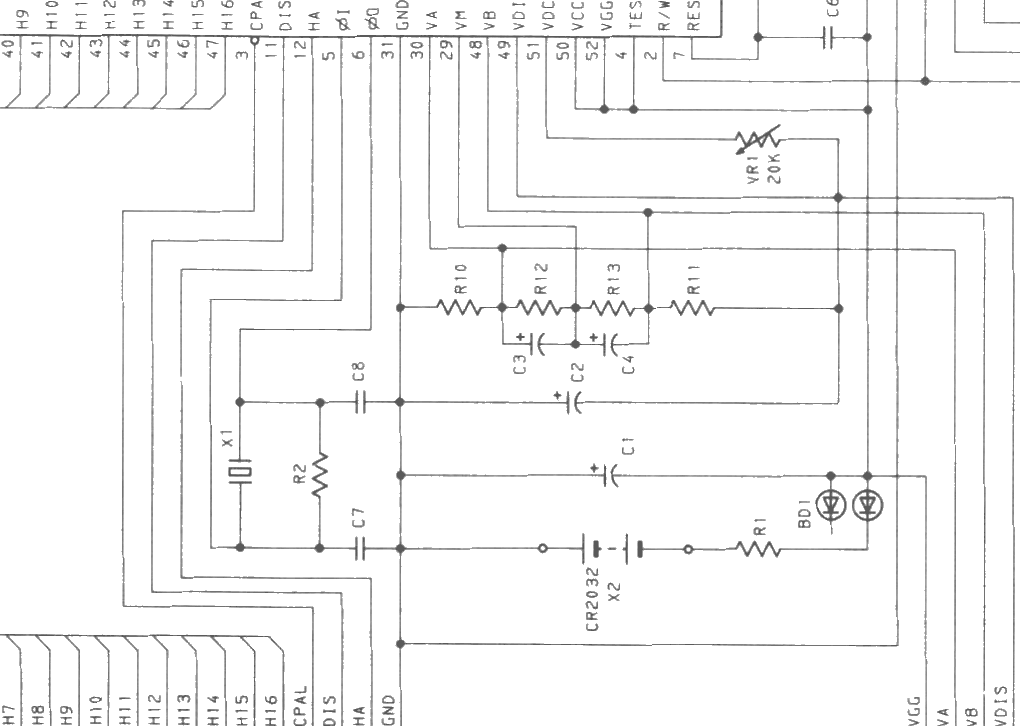

Part of "Circuit diagram (1)" in Sharp's PC-1350 service manual: the two CR2032 cells (X2) feeding the supply through R1 and the BD1 diode pair, C1 across the supply, the X1 crystal with C7 and C8, the VR1 20 kΩ contrast control and the R10 to R13 divider with C2, C3 and C4 that produces the LCD levels VA, VM, VB and VDIS. Rendered at 300 dpi from the scan and cropped.
