File:Sinclair QL Issue 6 layout, serial port area.png
Size of this preview: 666 × 599 pixels. Other resolution: 986 × 887 pixels.
Original file (986 × 887 pixels, file size: 25 KB, MIME type: image/png)
Summary
[edit | edit source]

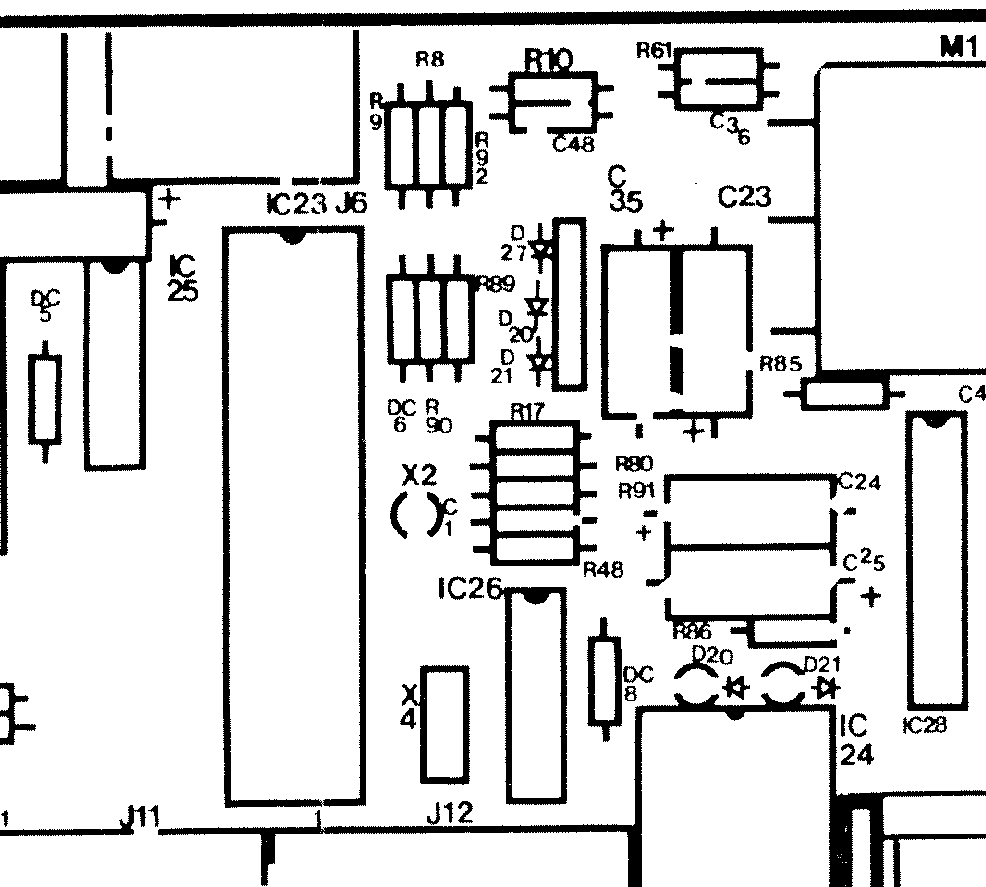

Part of Sinclair's Issue 6 component layout for the Sinclair QL main board: the ZX8302 (IC23), the 1489A receiver (IC26), the 8049 IPC (IC24), crystals X2 and X4, the keyboard connector J12 and the serial socket J6, with the edge of the 1488 driver (IC25) at the left.
Source
[edit | edit source]
Cropped from File:Sinclair QL PCB component layout (Issue 6).png, Sinclair's Issue 6 component layout (QL Service Manual, Figure 5.2, page 5.12).
.png){kind=link}
Author
[edit | edit source]
Sinclair Research Ltd
Licence
[edit | edit source]
Copyright Sinclair Research Ltd. Reproduced from the service manual for repair reference; not freely licensed.
