Sega Master System General Maintenance

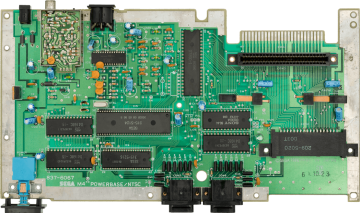

_PCB.png)
Routine maintenance for the Sega Master System (model 1, the "Power Base"). The console runs from an external 9 V DC adaptor; on the board, a 7805 regulator (IC8) makes the single 5 V rail. The PAL board has nine numbered main ICs and fifteen electrolytic capacitors.[1][2]
For fault-finding see Sega Master System Troubleshooting Guide; for capacitor lists by board, Sega Master System Capacitor Replacement Guide.
Safety
[edit | edit source]The console itself has no mains voltage in it. The original adaptor does: it is a mains transformer unit, and its input side is live when plugged in. Unplug it before opening it, and treat the primary wiring as live until you have checked it with a meter.
The VDP (315-5124) and the gate array (315-5216 or 315-5204) are Sega custom parts. Use an earthed wrist strap when handling the board.[1]
Opening the case
[edit | edit source]- Unplug the adaptor and any controllers and cartridges.
- Remove the screws from the underside and lift off the top case.
- Remove the shield plate. Consoles for West Germany also have a bottom shield plate (250-5022), which other markets do not.[1]
- Unplug the controller-port and switch wiring and lift the board out.
When refitting IC8, bolt it firmly to its heatsink with thermal compound. Sega's schematic shows silicone grease between IC8 and the heatsink, and Sega lists a faulty heatsink attachment among the causes of a dead console.[3][2]
Inspection
[edit | edit source]- Electrolytic capacitors: bulging or leaking cans, residue at the leads. See Capacitor Failure Symptoms.
- IC8 and its heatsink: bolt tight, compound present.
- CON1 (the 8-pin DIN) and CON7 (the DC jack): cracked solder joints. Sega's connector checks include broken pins and faulty soldering, with symptoms from no picture to a monochrome picture and unresponsive controls.[2]
- The cartridge, card and expansion connectors: bent or dirty contacts.
- The controller ports: Sega's troubleshooting for dead or erratic controls names CON5 and CON6, the EMI filters and the 330 Ω resistors on the controller lines, and continuity to IC4.[2][1]
- The reset and pause switches are blade switches. Sega lists a blade "not parallel with circuit board" among their faults.[2]
Power and regulation
[edit | edit source]| Test point | Expected | Notes |
|---|---|---|
| AC adaptor, no load | 13 V ± 1 V | Sega's instruction is to replace an adaptor that fails this |
| IC8 (7805) input | DC 9 V | From CON7 through bead JV and the power switch[3] |
| IC8 output | DC 5 V | The only rail on the board |
| Reset, test point JR | Rises slowly from 0 to 3.6 V | If not, Sega names C131 (10 µF) and R130 (100 kΩ) |
Check the adaptor first; it is outside the case and is the easiest thing to measure. The board has no fuse.[1]
Capacitors
[edit | edit source]The PAL "PC Main M4" board has fifteen electrolytics, from 4.7 µF to 100 µF at 10 V or 16 V. Other boards differ, and the Japanese board is very different. The lists, with Sega's part numbers for the PAL board and console5's lists for the others, are on Sega Master System Capacitor Replacement Guide.[4]
Connectors
[edit | edit source]The cartridge slot (CON3) and the expansion connector (CON4) are 50-pin edge connectors with the same signals; the card slot (CON2) is 35-pin.[3][1] Clean the contacts with isopropyl alcohol on a lint-free cloth and let them dry. Stop polishing as soon as the plating is bright; the gold is thin.
Sega's software fault table gives a dirty or badly connected 50-pin connector as the first cause of no picture, a monochrome picture or a mosaic pattern with a game inserted. For games that crash or reset in mid-play, it adds that the fault may be cured by fitting a 100 to 180 pF capacitor on address line A13.[2]
Video and audio
[edit | edit source]The 8-pin DIN carries composite video, audio and RGB. With no load Sega expects DC 1.3 V on the video pin and DC 1.9 V on the RGB pins 6, 5 and 8, and audio of up to 300 mVp-p between pins 1 and 2.[2] With no picture, Sega's first suspects are C28 (100 µF) and R27 (75 Ω) on the composite output.[2][4]
Checks after maintenance
[edit | edit source]| Check | Method | Pass |
|---|---|---|
| 5 V rail | Meter on IC8 output, cold and after an hour | DC 5 V |
| Reset | Meter on JR at power-on | 0 rising slowly to 3.6 V[2] |
| CPU clock | Scope on IC5 pin 34 | 3.579545 MHz on NTSC boards (Sega); 3.546893 MHz on PAL[2][5] |
| Video | Meter on CON1, no load | DC 1.3 V video, 1.9 V RGB[2] |
| Controllers | Both ports, all directions and both buttons in a game | No missed or stuck inputs |
| Cartridge | Insert and remove a known-good game several times | Boots every time |
