File:NES-001 PCB lead connectors (Nintendo ASC manual).jpg
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

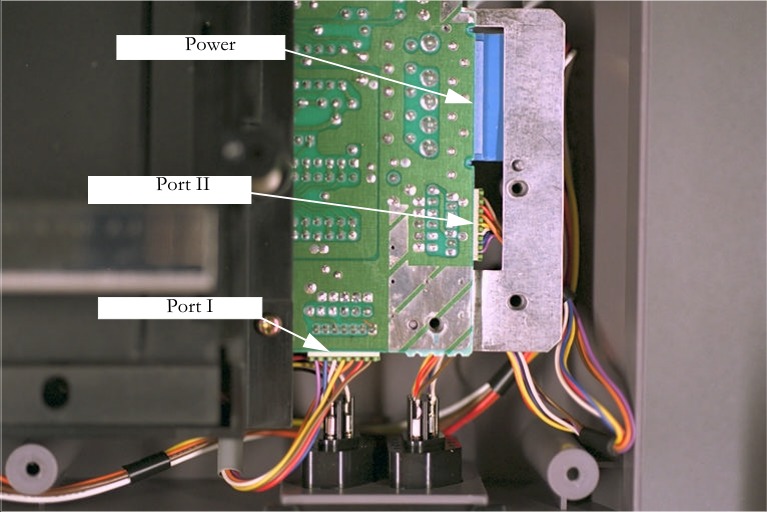

Photograph of the NES-001 PCB lifted at one edge, with Nintendo's labels marking the power switch, port II and port I lead connectors that must be unplugged before the PCB comes out.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Nintendo of America, Authorized Service Center Manual, Field Service Department, revision June 2002, chapter 4, hosted here as File:Nintendo Authorized Service Center Manual June 2002.pdf (described on Nintendo Authorized Service Center Manual (June 2002)), page 27 (PDF page 27). Rendered from the PDF on 25 October 2026.
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Nintendo of America Inc.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Nintendo of America Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
