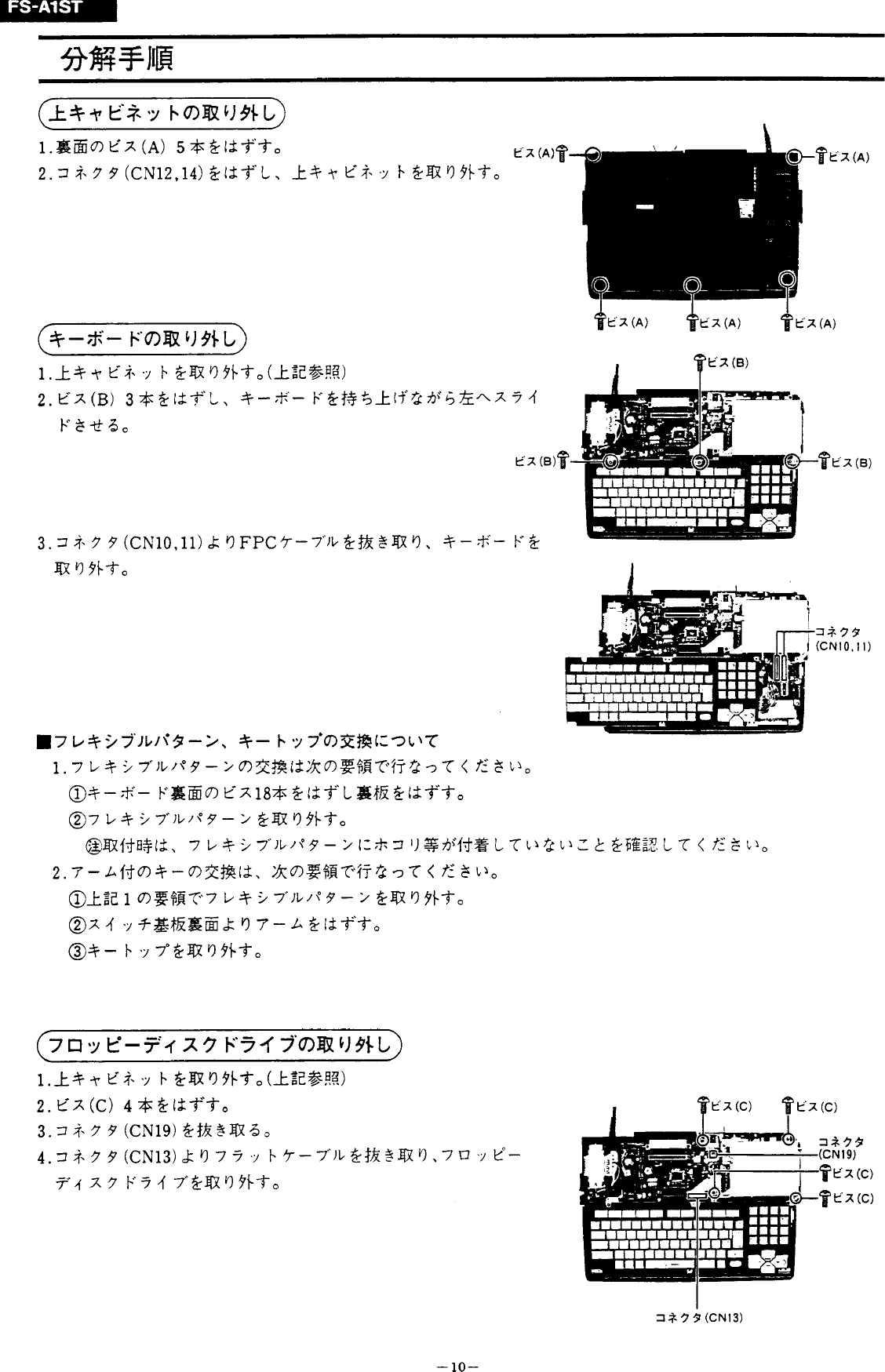

Page 10 of the Panasonic FS-A1ST Technical Guide (in Japanese): removal of the upper cabinet (five screws A underneath, connectors CN12 and CN14), the keyboard (three screws B, flexible cables at CN10 and CN11), the keyboard's flexible pattern and key tops, and the floppy disk drive (four screws C, CN19, flat cable at CN13), with photographs showing each screw position. Rendered from File:Panasonic FS-A1ST Technical Guide.pdf.
