Panasonic FS-A1ST General Maintenance
Routine maintenance on the Panasonic FS-A1ST covers opening the case, the backup cells, the drive belt, supply checks and the audio recalibration. Fault-finding is in the Panasonic FS-A1ST Troubleshooting Guide and the electrolytic list in the Panasonic FS-A1ST Capacitor Replacement Guide. Page numbers below are the printed numbers in Panasonic's Technical Guide, described on the Panasonic FS-A1ST Technical Guide page.
Safety and mains voltage
[edit | edit source]The FS-A1ST was built for Japan's AC 100 V mains.[1] The mains switch and transformer are inside the case, so the switch carries mains voltage whenever the machine is plugged in. Unplug it before opening the case.[2]
Outside Japan the machine needs either a step-down transformer or a different internal transformer. The MSX Resource Center page links to a write-up on fitting a 230 V supply.[3] Jipe reported fitting 220 V transformers with two 15 V windings to five turbo R machines without trouble.[4] Before connecting a replacement transformer, check its output against the figures in the troubleshooting guide.
Dismantling
[edit | edit source].png)

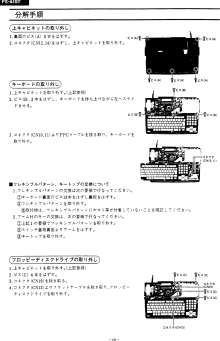

The Technical Guide gives the order on pages 10 and 11:[5]
- Upper cabinet: remove the five screws marked A on the underside, lift the upper cabinet and unplug CN12 and CN14.
- Keyboard: remove the three screws marked B, slide the keyboard to the left while lifting it, and unplug the two flexible cables from CN10 and CN11.
- Drive: remove the four screws marked C and unplug CN19 and the flat cable from CN13. The parts list gives CN19 as the 3-pin external microphone connector.[6]
- Main board: remove the two screws marked D on the underside, then two E, five F and three G screws, and unplug CN1 (power) and CN17 (backup cells).
- LED board: release three claws (H). Operation panel: release its claws (I). Switch board: two screws (J).
The keyboard's flex pattern sits behind a back plate held by 18 screws. The guide warns against letting dust in if that plate is removed.[5]
Backup cells
[edit | edit source]The clock and the 16 KB SRAM, which holds the word processor's learning dictionary and the SET settings, run from two AA cells when the machine is off. Panasonic did not fit the cells at the factory. After fitting cells, set the date and time with SET DATE and SET TIME.[7] The battery lead reaches the main board at CN17.[6]
The MSX Resource Center recommends lithium cells or Eneloop rechargeables. It advises against alkaline cells because they leak sooner or later.[3]
The Technical Guide's backup test (page 14):[8]
10 CLS:KEY OFF 20 GET TIME T$ 30 LOCATE 10,10:PRINT T$ 40 GOTO 20
Set the time, run the program, switch off and on again, run it again and check that the time has carried on.
Drive belt
[edit | edit source]The drive is belt-driven. The MSX Resource Center gives the belt as rubber, 0.3 mm thick, 58 mm in diameter and 3 mm wide, sold under the Panasonic part number FW-U1P501J.[3]
Owners' experience with belt changes:[9]
- Original belts have been found melted onto the pulleys. Clean all the old rubber off before fitting a new belt; one owner's first swabs of isopropyl alcohol came out completely black, and leftover rubber on a pulley made a new belt come off.
- Not every belt sold for these drives fits. Grauw tried several before one stayed on the pulley and was tight enough.
- Replacement belts have lasted five to ten years.
- A drive that spins and seeks track 0 after a belt change can still report "disc offline". gdx had this after a belt change and after long disuse, and a head-cleaning disk cleared it.
The MSX Resource Center gives the original drive flat cable as a Sumitomo AWM 2896, 100 mm long with 1.25 mm pitch.[3]
Supply checks
[edit | edit source]With the case open and the machine running, check the three rails against page 12 of the Technical Guide:[10]
| Rail | Where to measure | Expected |
|---|---|---|
| +5 V | Collector of Q1 | 5 V ±0.25 V |
| +12 V | IC11 input / output | About +21 V in, +12 V ±1.2 V out |
| −12 V | IC13 input / output | About −22 V in, −12 V ±1.2 V out |
Audio recalibration
[edit | edit source]FRS published a set of part changes that rebalance the slot, PSG and FM levels and relax the low-pass filters.[11] All the parts are 0805 surface-mount; the capacitors should be polyphenylene sulphide film or C0G ceramic.[11]
| Part | Original (parts list) | FRS value |
|---|---|---|
| C48 | 33 nF | 1.8 nF |
| C49 | 33 nF | 1.8 nF |
| C57 | 270 pF | 180 pF |
| C159 | 470 pF | 150 pF |
| R23 | 39 kΩ | 15 kΩ |
| R24 | 56 kΩ | 22 kΩ |
RAM upgrades
[edit | edit source]Some machines carry a 512 KB RAM upgrade.[3] On an FS-A1ST with such an upgrade that would not start, Jipe advised checking the upgrade's solder joints and wires. sdsnatcher73 had an upgrade fail over time and take out an address line on the S1990.[13]
