MSX FM-PAC
| Panasonic FM-PAC | |
|---|---|
 |
|
| Panasoft FM-PAC, SW-M004 (photo by Yaca2671, CC BY 3.0, Wikimedia Commons) | |
| Manufacturer | Matsushita (Panasonic), sold under the Panasoft brand |
| Type | MSX-MUSIC sound cartridge with battery-backed SRAM |
| Release date | 1988 |
| Price | ¥7,800 |
| Interface | MSX cartridge slot (needs +12 V and −12 V) |
| Weight | About 140 g |
| Model | SW-M004 |
| Storage | 8 KB SRAM, battery-backed |
The FM-PAC (FM Pana Amusement Cartridge, model SW-M004) is a sound cartridge that Panasonic released in 1988 under its Panasoft brand. It adds MSX-MUSIC, built on the Yamaha YM2413 FM sound chip, to any MSX, and it is the only official MSX-MUSIC cartridge. It also carries 8 KB of battery-backed static RAM for saving games, compatible with Panasoft's earlier PAC cartridge.[1] The sound is mono, and a switch on the cartridge sets its level against the computer's own sound.[1][2]
Inside
[edit | edit source]

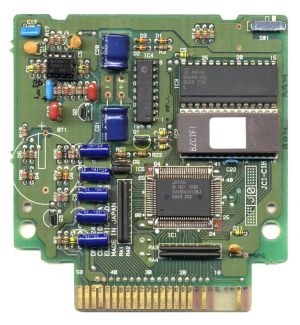

The board carries a Matsushita custom chip, an EPROM holding the BIOS and firmware, a Fujitsu 8 KB static RAM, an 18-pin chip at IC4, a Sony CXA4558 dual op-amp, the volume switch and the coin-cell position BT1.[3][1] The cartridge needs a slot that supplies +12 V and −12 V.[1]
The case opens with two cross-head screws on the back.[4] Panasonic's guide tells owners not to open it, so this is a repair job, not routine care.[2]
Electrolytic capacitors
[edit | edit source]The published photograph shows seven electrolytics: C20 (1000 µF 10 V) and C21, a second large part whose value is hidden, and five small radial parts, two of 47 µF 16 V and three of 10 µF 16 V.[3] The MSX Resource Center links a Japanese circuit diagram of the FM-PAC only through an archived copy of the original page.[1] Read the values from your own board before ordering replacements, and replace only parts that leak, bulge or measure badly; see Capacitor Failure Symptoms.
Battery
[edit | edit source]The SRAM keeps its contents only while the backup battery lasts; Panasonic gave its life as about five years.[2] The sound works without it.[4] Sources differ on the fitted cell: the MSX Resource Center gives a CR2025 or BR2025, while a French repair page found a Panasonic BR2325 and replaced it with a CR2032 with solder tags.[1][4] Check the cell in your cartridge.
- Copy the SRAM contents to disk first with the built-in firmware (CALL FMPAC), if you want to keep them.[1]
- Remove the two screws on the back and open the case.[4]
- Note the polarity, desolder the old cell and fit a 3 V lithium cell with solder tags, the same way round.[4]
- Keep the soldering short: overheating a lithium cell can make it burst, so wear safety glasses.[1]
Use and care
[edit | edit source]- Switch the computer off before inserting or removing the FM-PAC.[5]
- The volume switch is on the back. Switch the computer off before moving it, and let it click into place: left lowers the FM level, right raises it.[5][2]
- Do not touch the contacts, and keep the cartridge out of sunlight and away from liquids.[5]
- Clean the case with a soft cloth, with a little washing-up liquid on the cloth if needed, then dry it.[2]
Troubleshooting
[edit | edit source]| Symptom | Check |
|---|---|
| No FM sound | The cartridge firmly seated; another slot; the volume switch clicked into a position; the computer turned off and on again.[2] The slot must supply +12 V and −12 V.[1] |
| FM too loud or too quiet against the PSG | The volume switch on the back, moved with the computer off.[5] |
| Saved games lost or corrupted | The backup battery; see above.[2][4] |
| Need to test the cartridge | Start the firmware with CALL FMPAC: it plays demo sounds and backs up or restores the SRAM.[1] |
| Firmware menus in Japanese | An English translation can be programmed into a replacement 27C512 EPROM.[4] |
Documentation
[edit | edit source]Panasonic's Japanese user's guide is on the Internet Archive, and English and Dutch translations of it are typed up at the links above.[1][2][5]
